Home >> Infiniti >> 2009 >> G37 Base, 2D Convertible >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical -- Convertible >> Removal And Installation >> Fuel Injector And Fuel Tube >> Exploded View

Exploded View

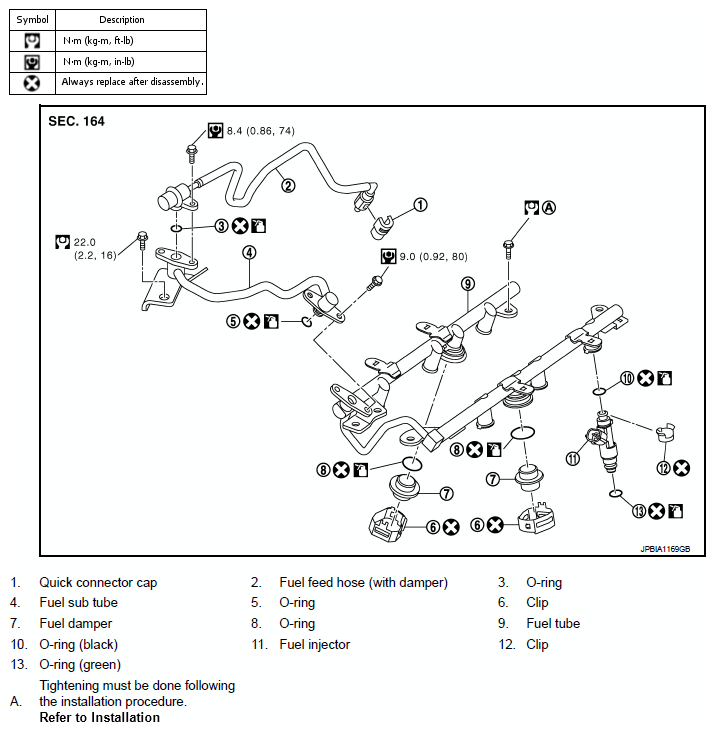

Fig 1: Exploded View Of Fuel Injector And Fuel Tube With Torque Specifications
G05972128Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Never remove or disassemble parts unless instructed as shown in the figure.
