Sonar Control Unit Connector End View (M44)

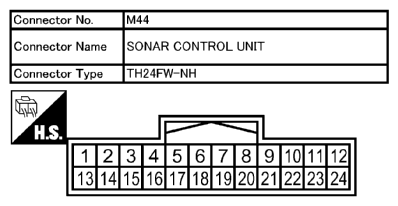

Fig 1: Sonar Control Unit Connector End View (M44)

G10659183

Courtesy of NISSAN NORTH AMERICA, INC.
