Height Sensor Connector End View (B32)

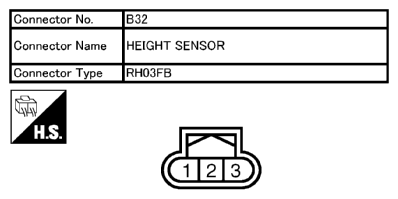

Fig 1: Height Sensor Connector End View (B32)

G10660165

Courtesy of NISSAN NORTH AMERICA, INC.
