Console Power Socket Connector End View (M142)

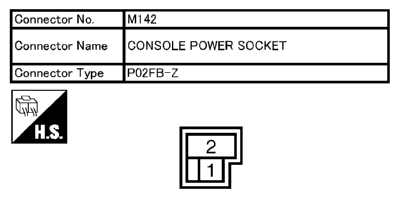

Fig 1: Console Power Socket Connector End View (M142)

G10640543

Courtesy of NISSAN NORTH AMERICA, INC.
