Auto Cruise Control System (DCA)
>>
On-Vehicle Repair
>>
ICC Sensor Integrated Unit
>>
Exploded View
Exploded View
CAUTION:
Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor integrated unit.

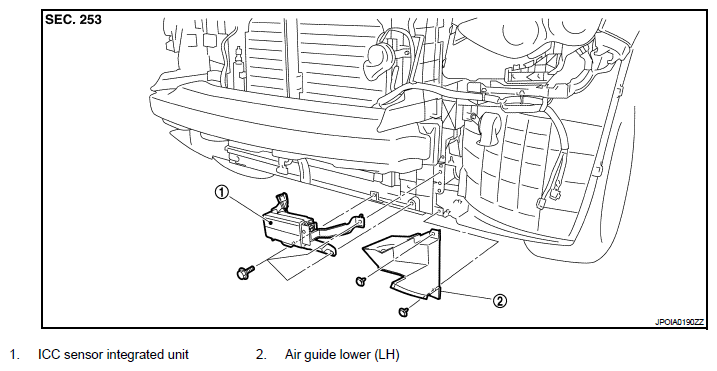

Fig 1: Identifying ICC Sensor Integrated Unit And Air Guide Lower
Courtesy of NISSAN MOTOR CO., U.S.A.
