Clutch And Band Chart

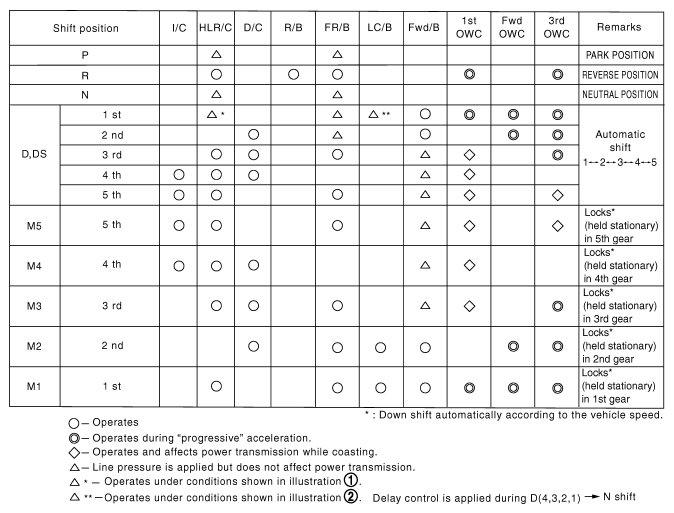

Fig 1: Clutch And Band Chart

G06300828

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Throttle Opening Graph

G06300829

Courtesy of NISSAN MOTOR CO., U.S.A.
