Exploded View

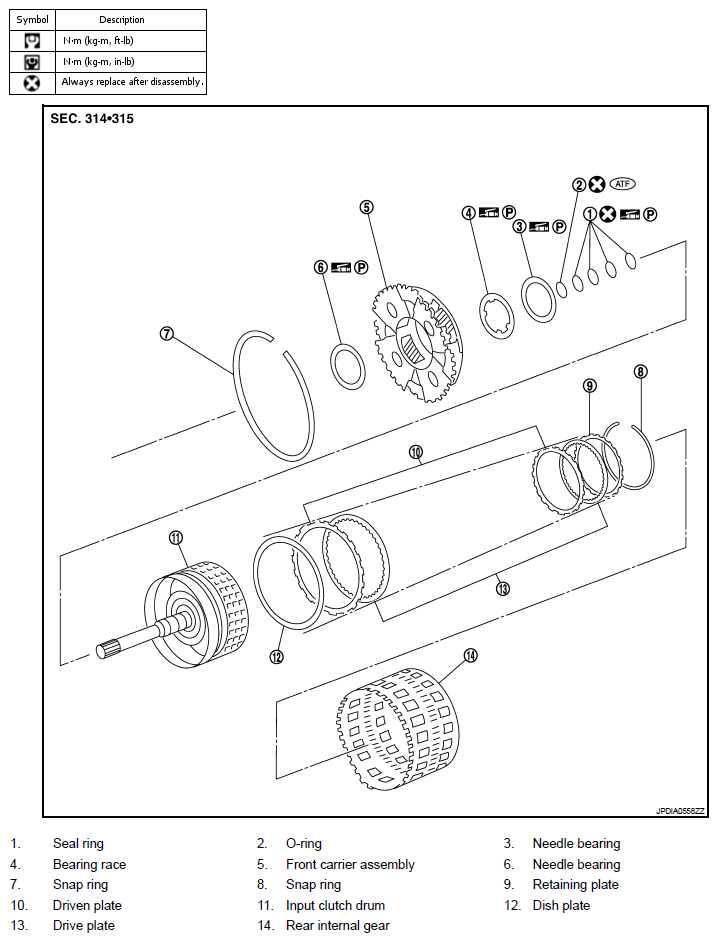

Fig 1: Front Carrier, Input Clutch And Rear Internal Gear With Torque Specifications

G06301182

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
