Wiring Diagram - ENGINE CONTROL SYSTEM -

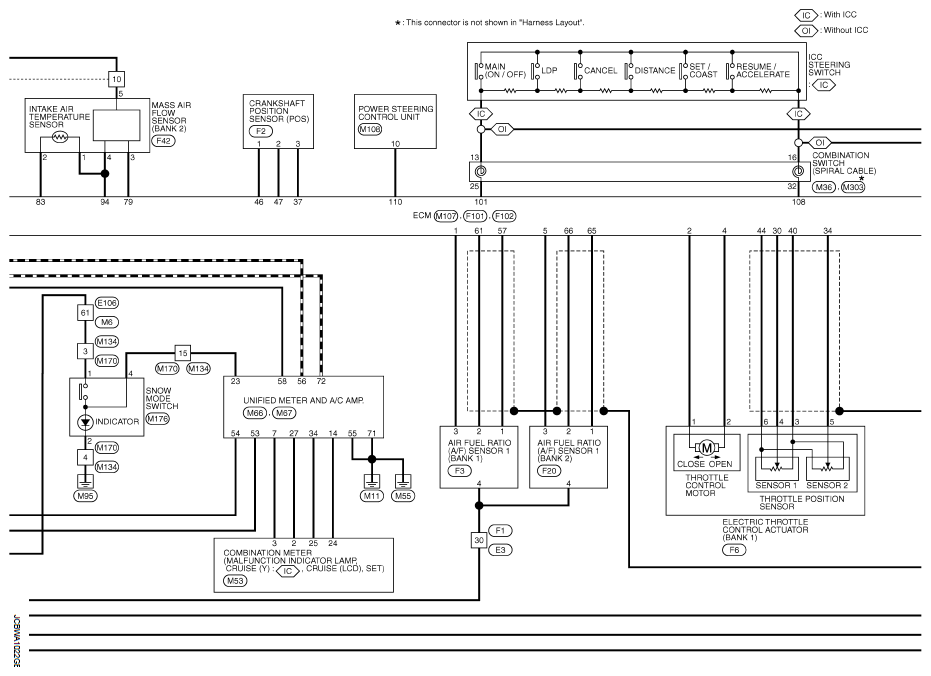

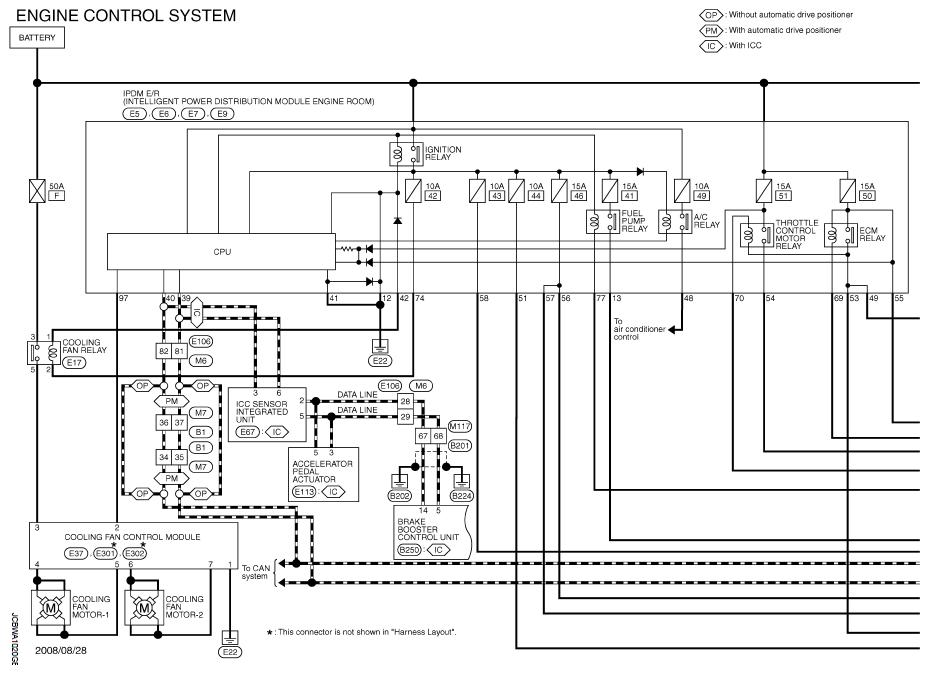

Fig 1: Engine Control System - Wiring Diagram (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

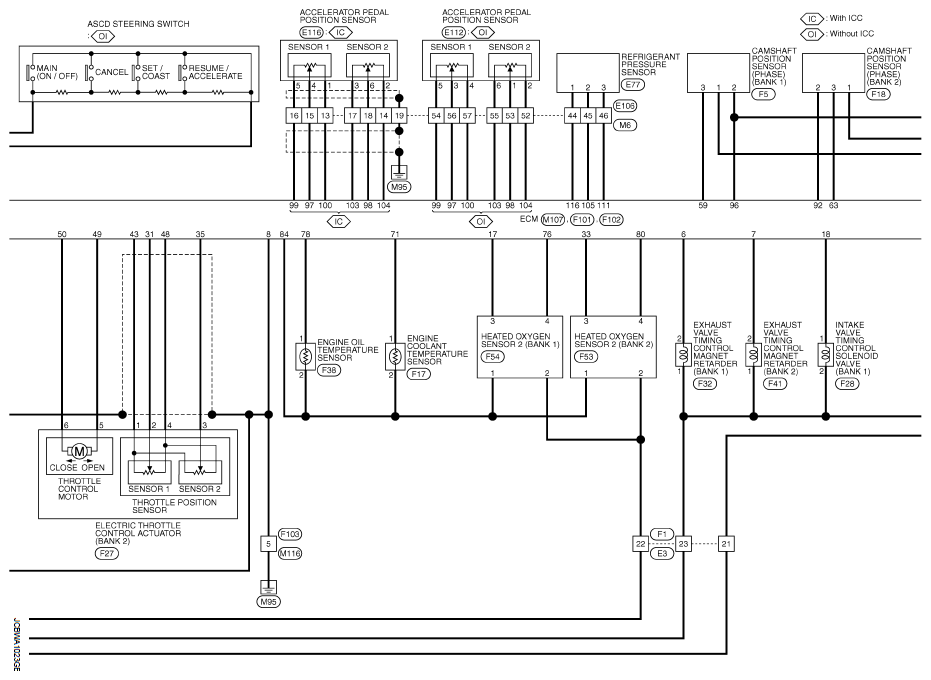

Fig 2: Engine Control System - Wiring Diagram (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

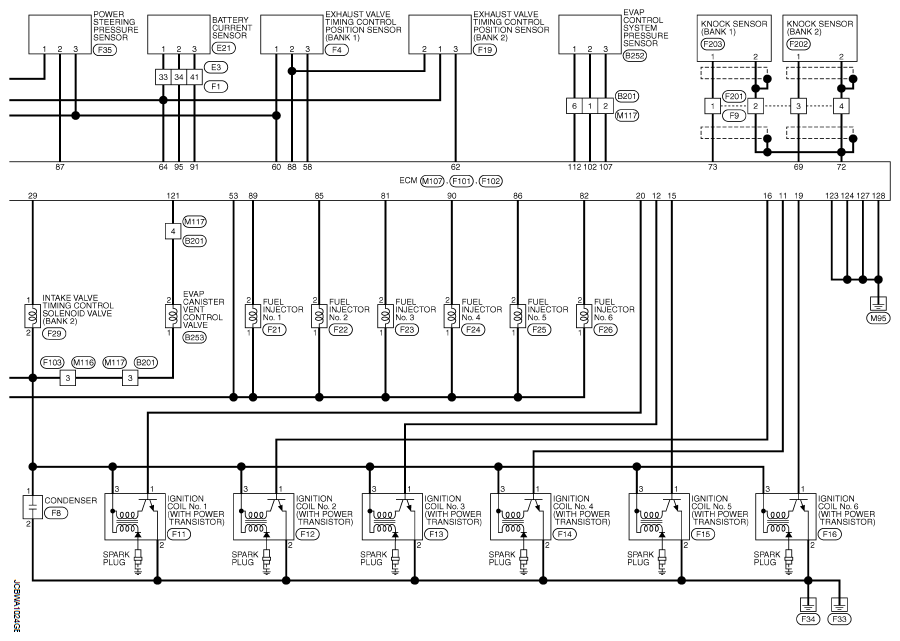

Fig 3: Engine Control System - Wiring Diagram (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

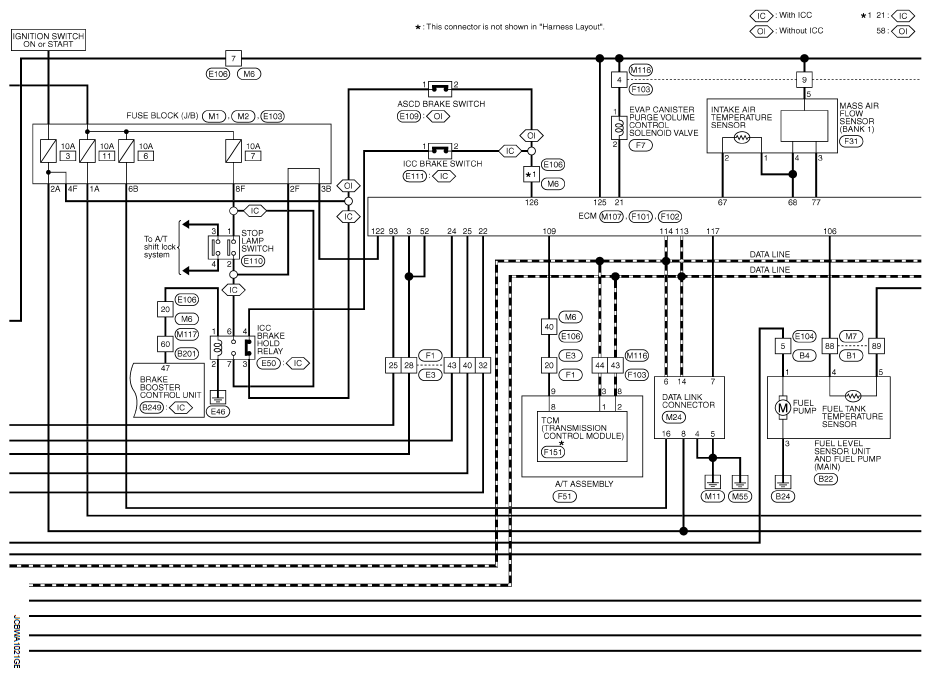

Fig 4: Engine Control System - Wiring Diagram (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine Control System - Wiring Diagram (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

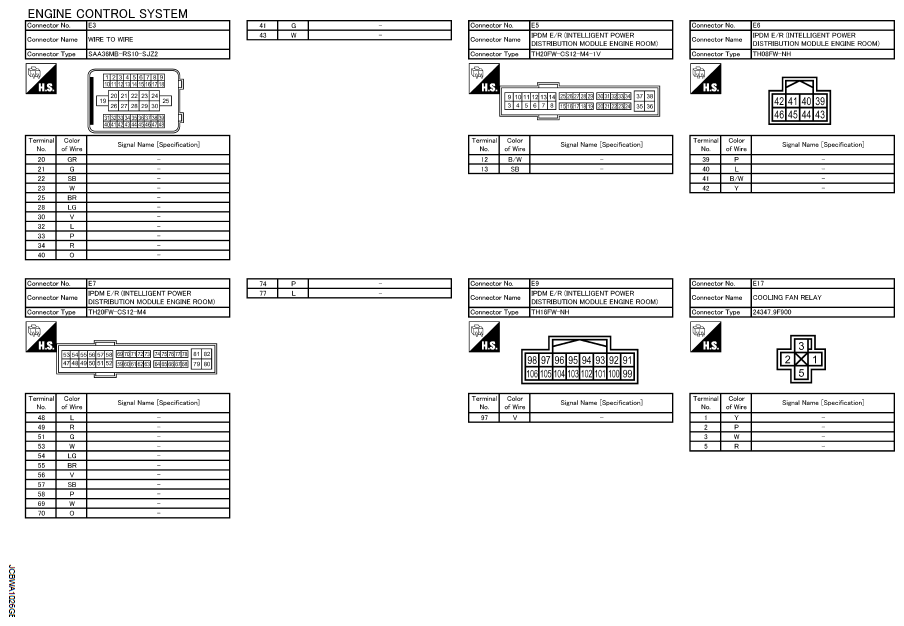

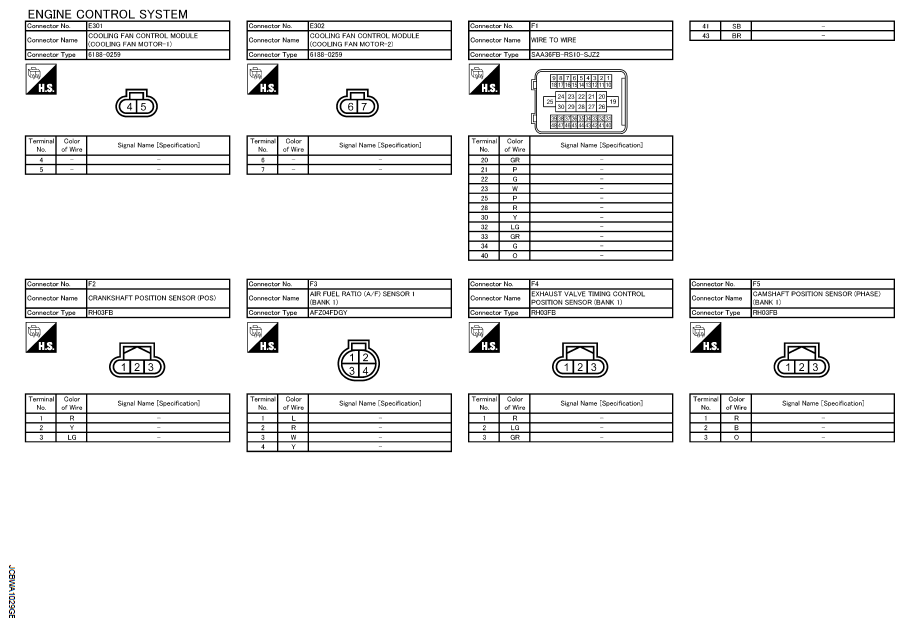

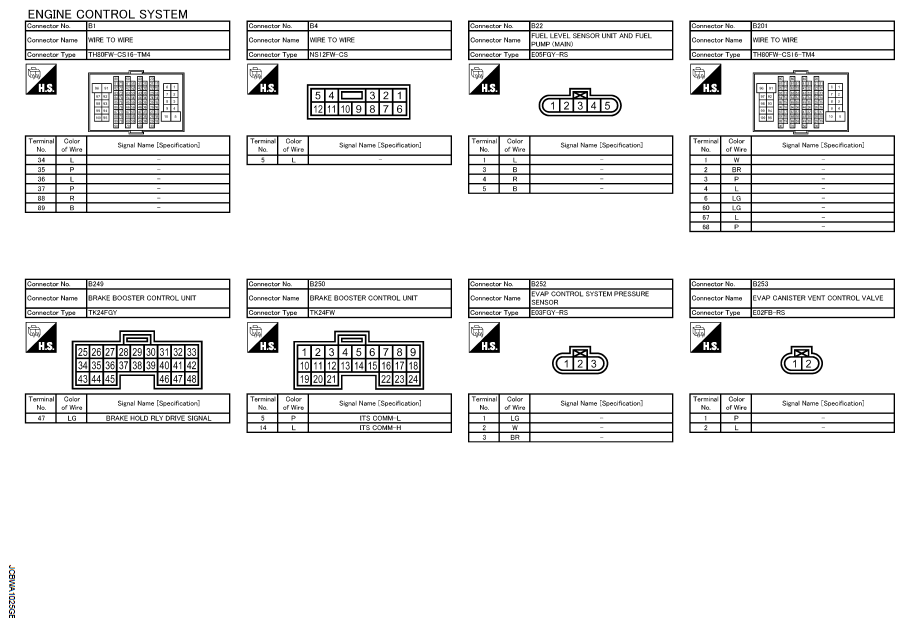

Fig 6: Identifying Engine Control System Terminal Chart (1 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

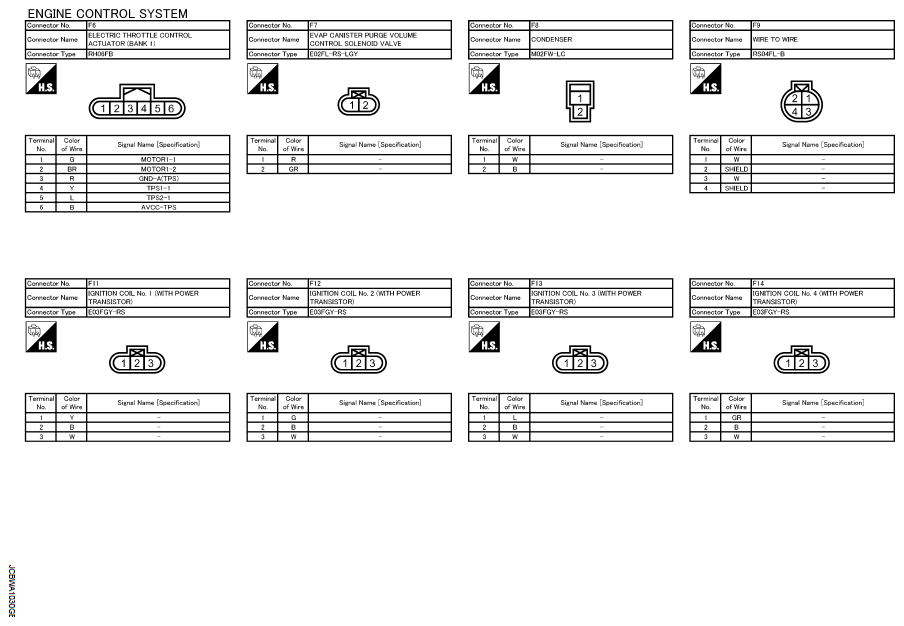

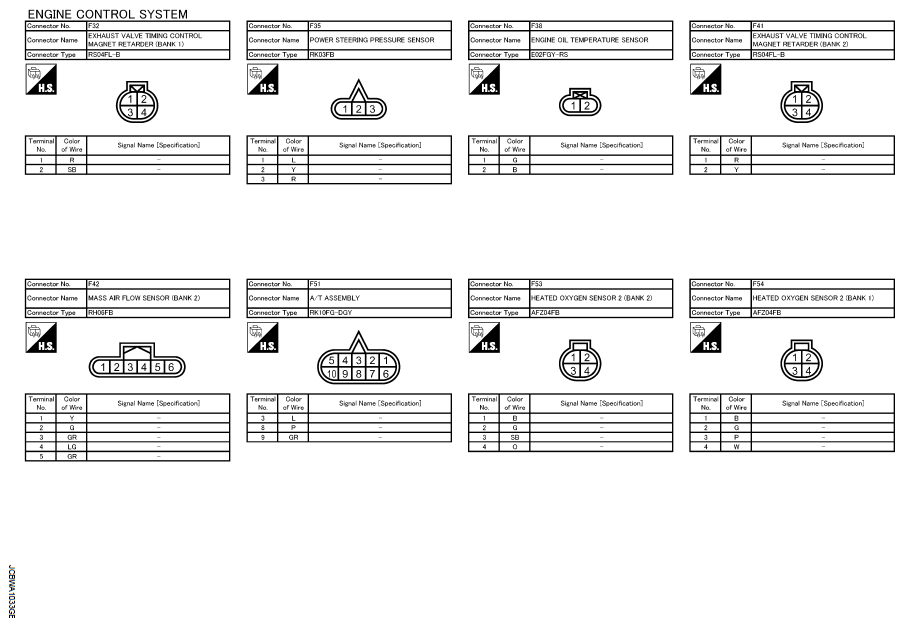

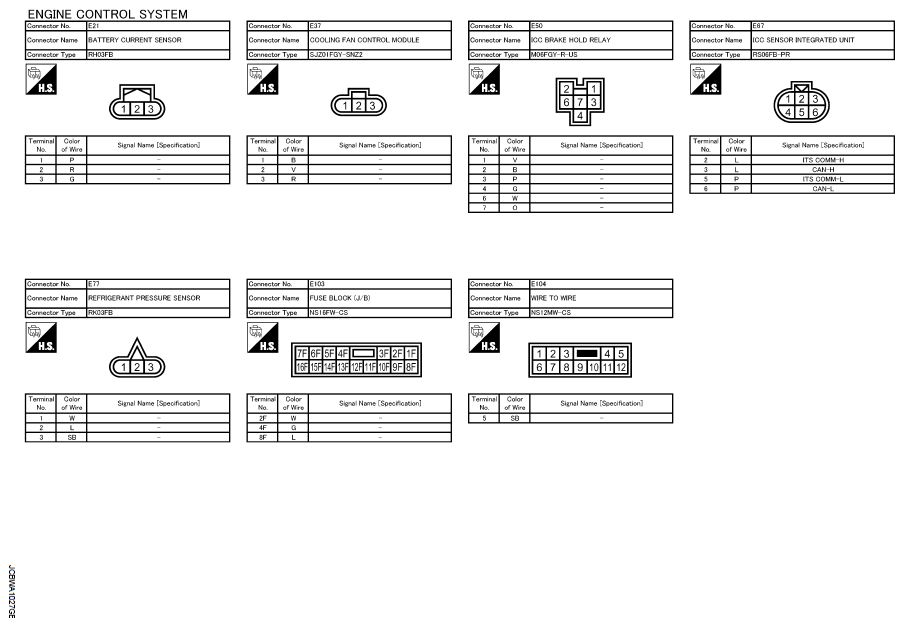

Fig 7: Identifying Engine Control System Terminal Chart (2 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

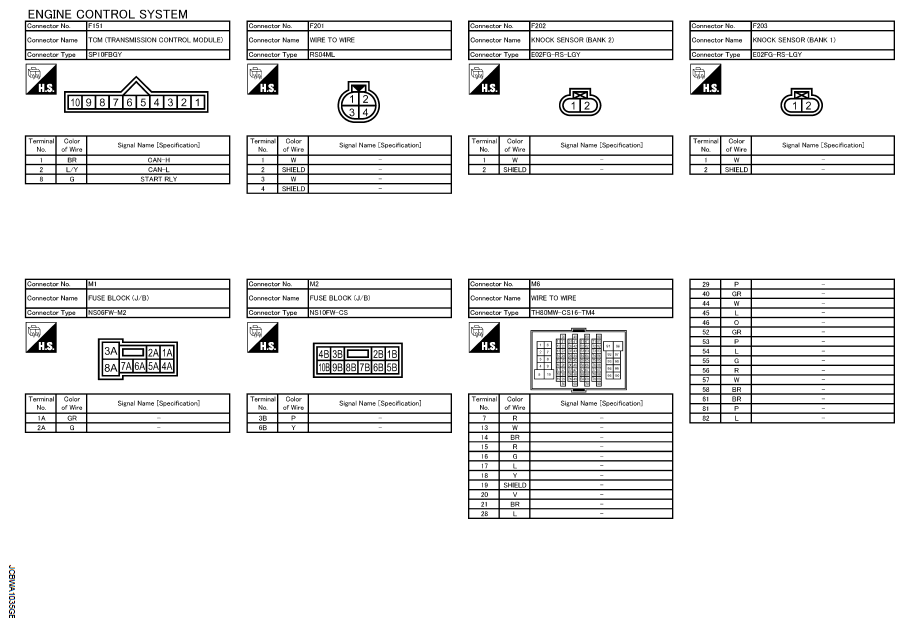

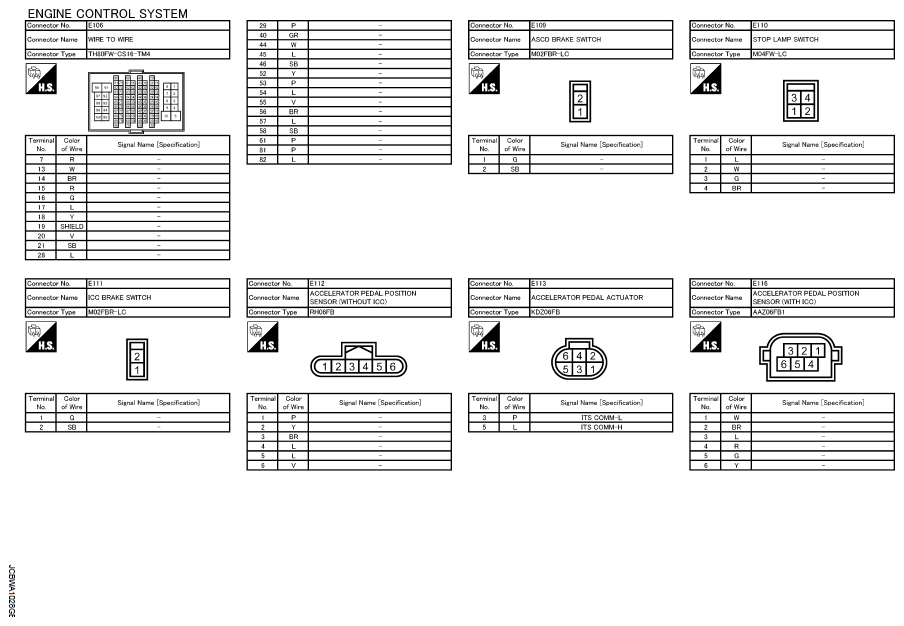

Fig 8: Identifying Engine Control System Terminal Chart (3 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

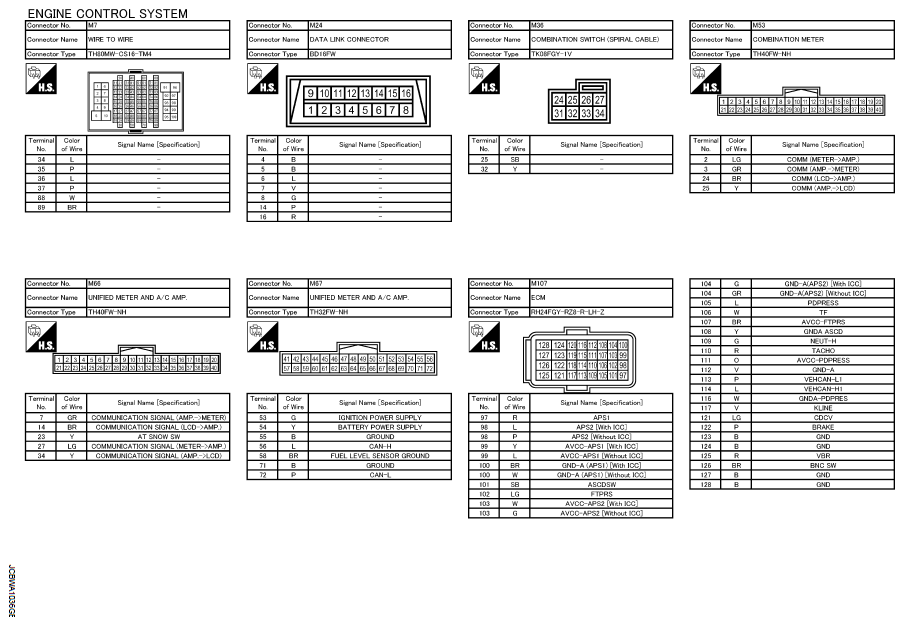

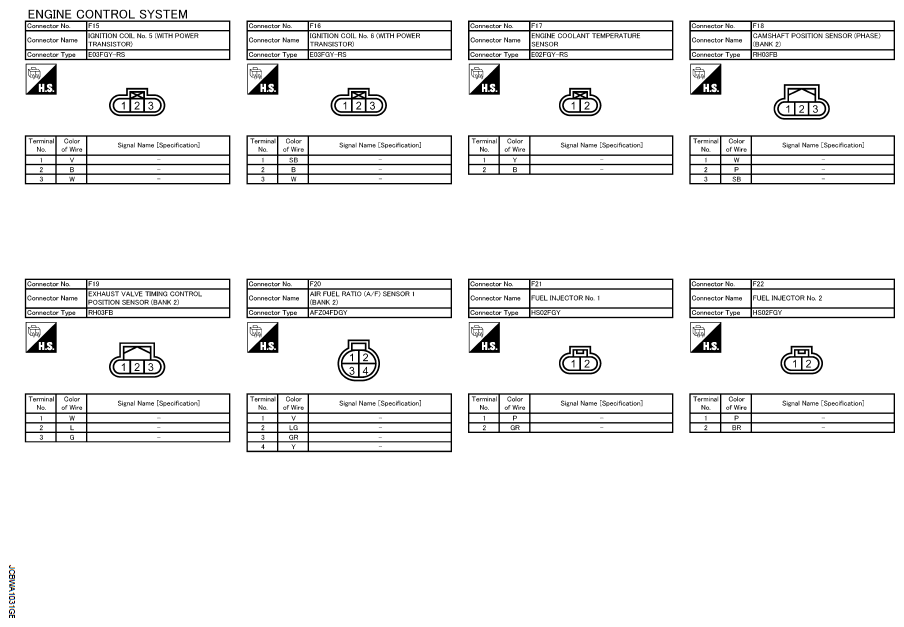

Fig 9: Identifying Engine Control System Terminal Chart (4 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

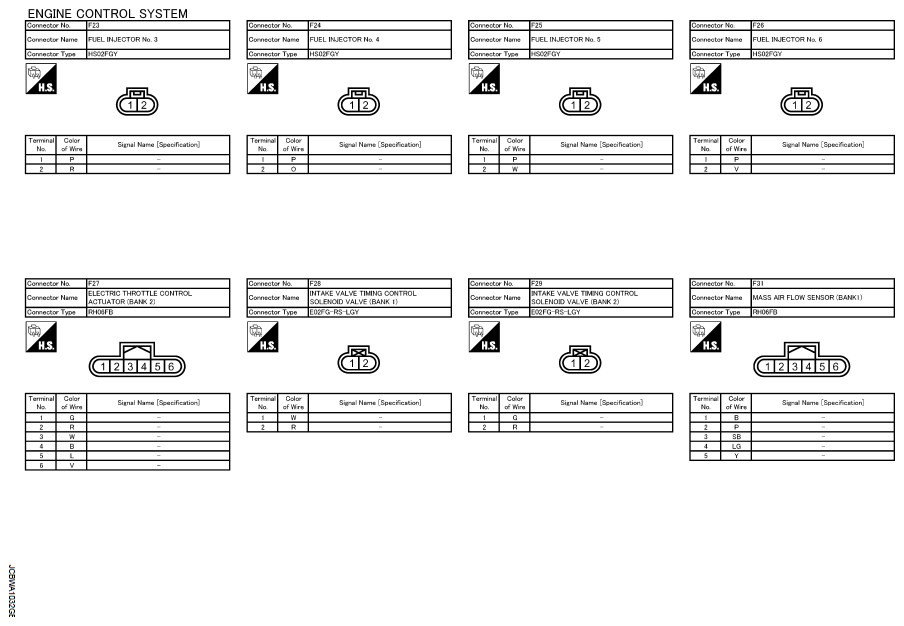

Fig 10: Identifying Engine Control System Terminal Chart (5 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

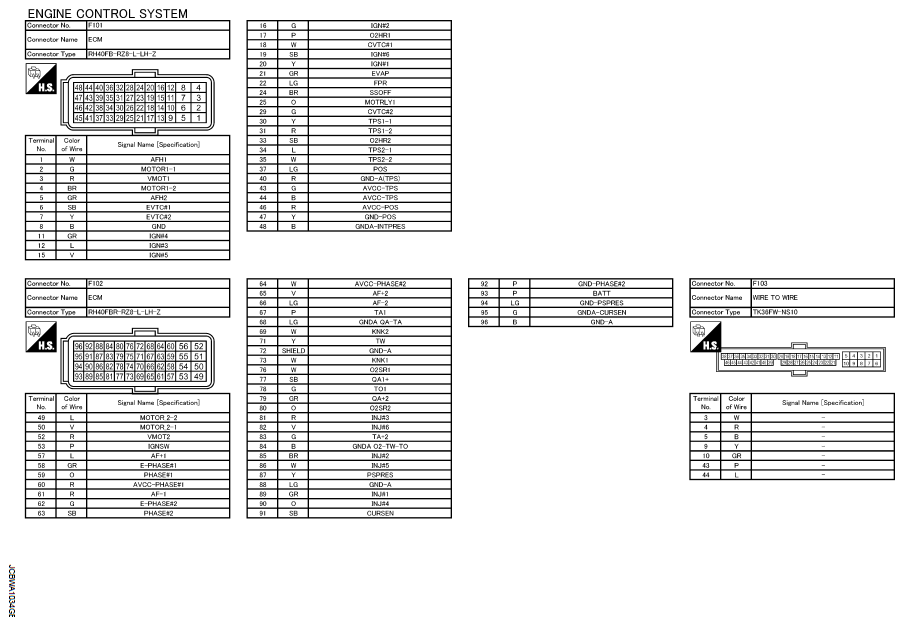

Fig 11: Identifying Engine Control System Terminal Chart (6 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

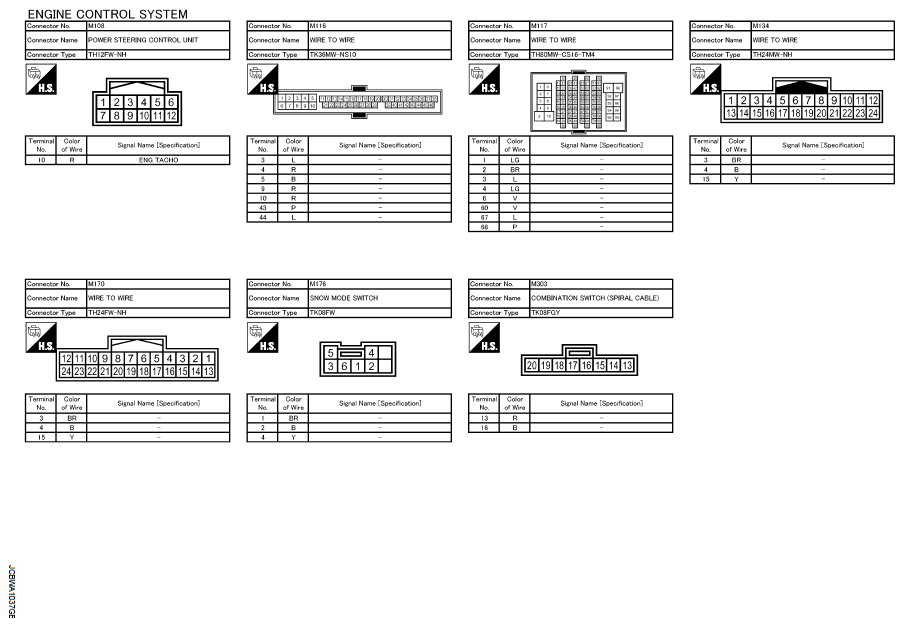

Fig 12: Identifying Engine Control System Terminal Chart (7 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Engine Control System Terminal Chart (8 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Terminal Chart (9 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Control System Terminal Chart (10 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Engine Control System Terminal Chart (11 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Engine Control System Terminal Chart (12 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Engine Control System Terminal Chart (13 Of 13)

Courtesy of NISSAN MOTOR CO., U.S.A.
