FRONT POWER SOCKET : Exploded View

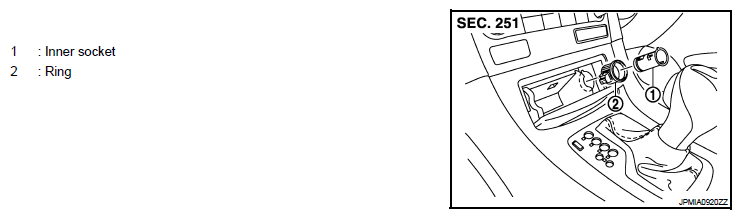

Fig 1: Identifying Front Power Socket

G06302445

Courtesy of NISSAN MOTOR CO., U.S.A.
