Wiring Diagram - BCM -

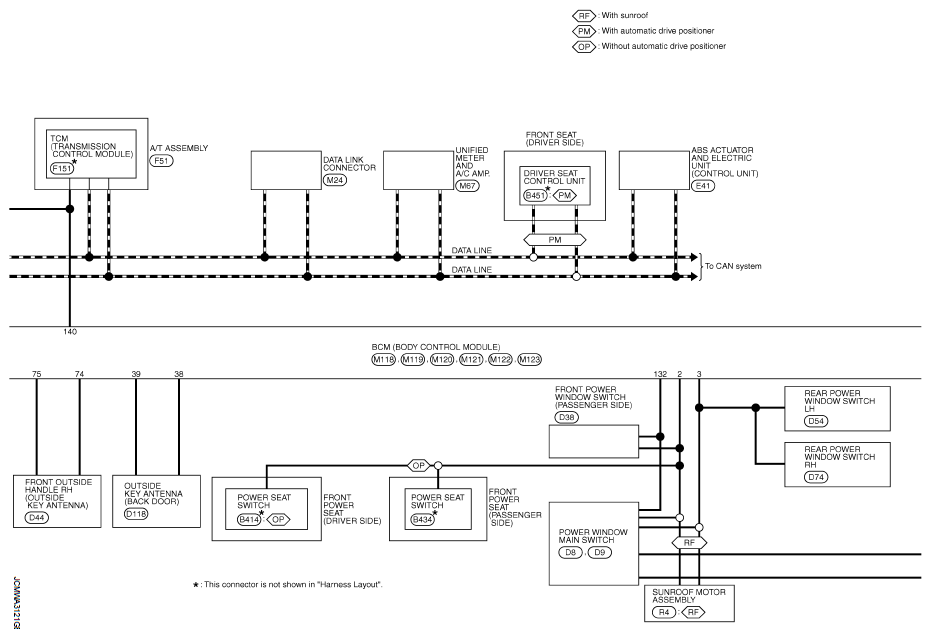

Fig 1: Body Control Module - Wiring Diagram (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

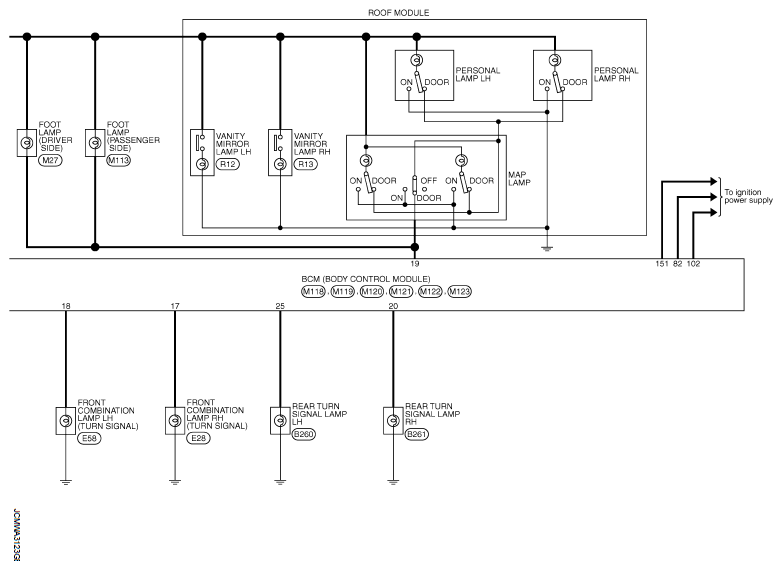

Fig 2: Body Control Module - Wiring Diagram (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

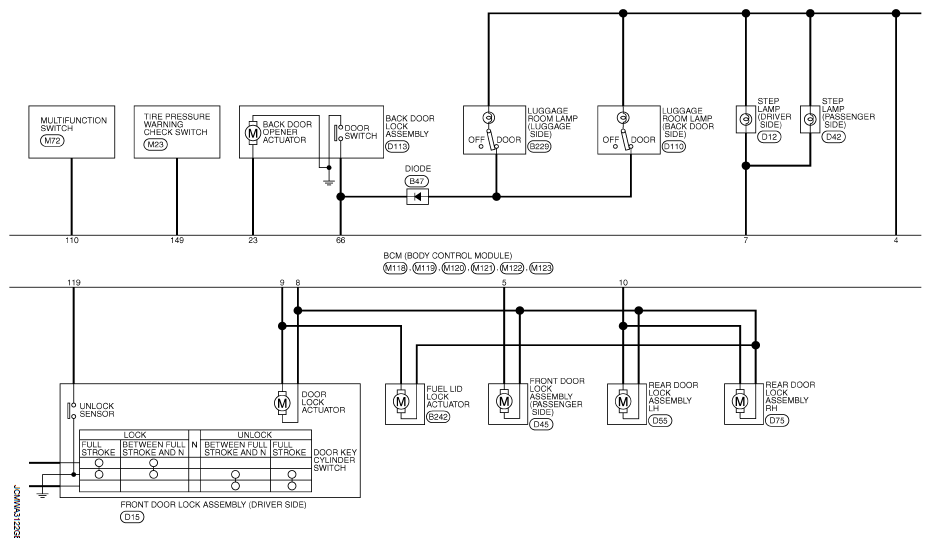

Fig 3: Body Control Module - Wiring Diagram (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

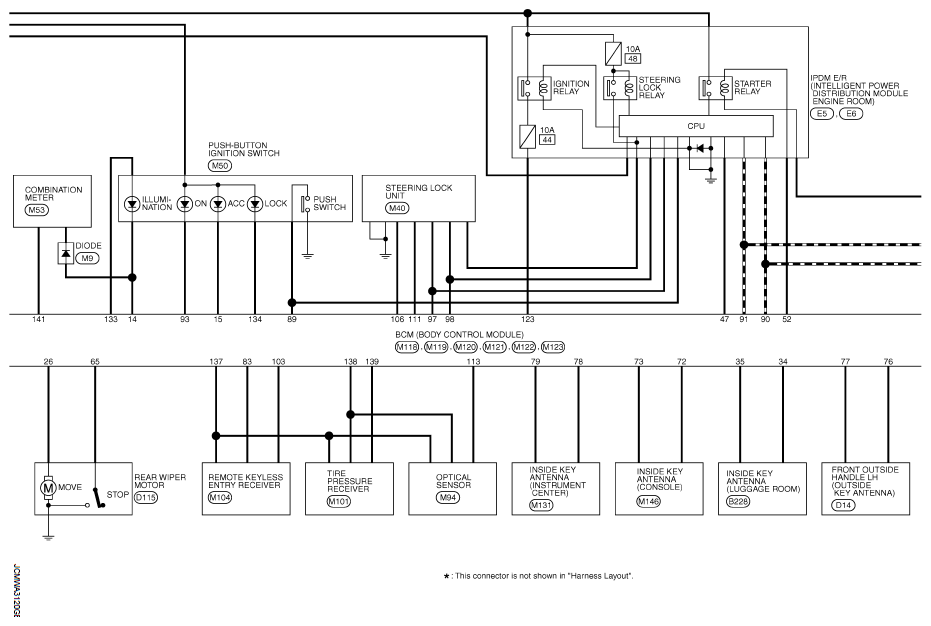

Fig 4: Body Control Module - Wiring Diagram (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

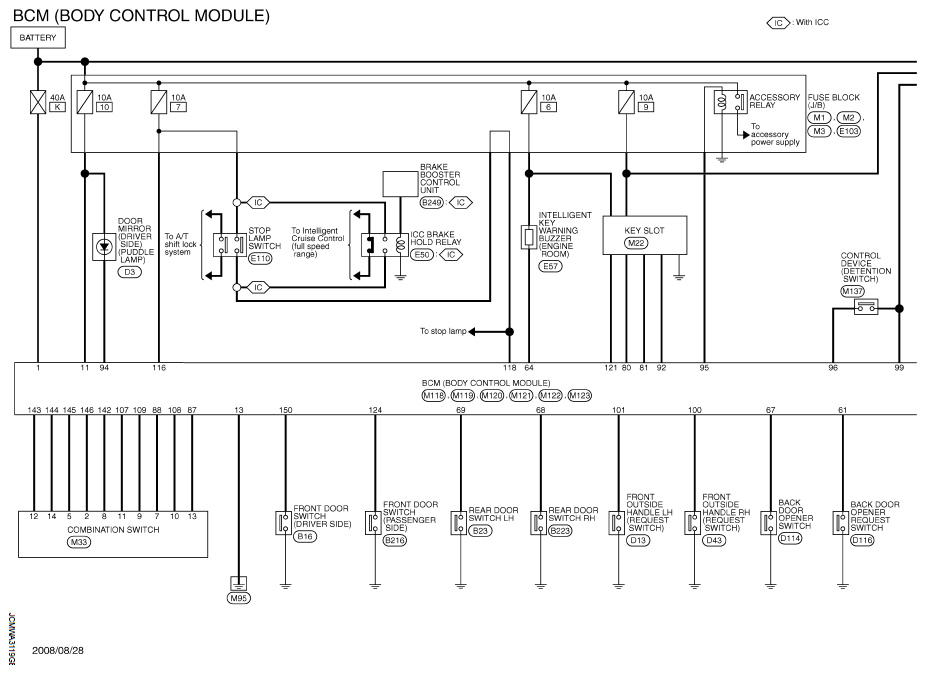

Fig 5: Body Control Module - Wiring Diagram (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

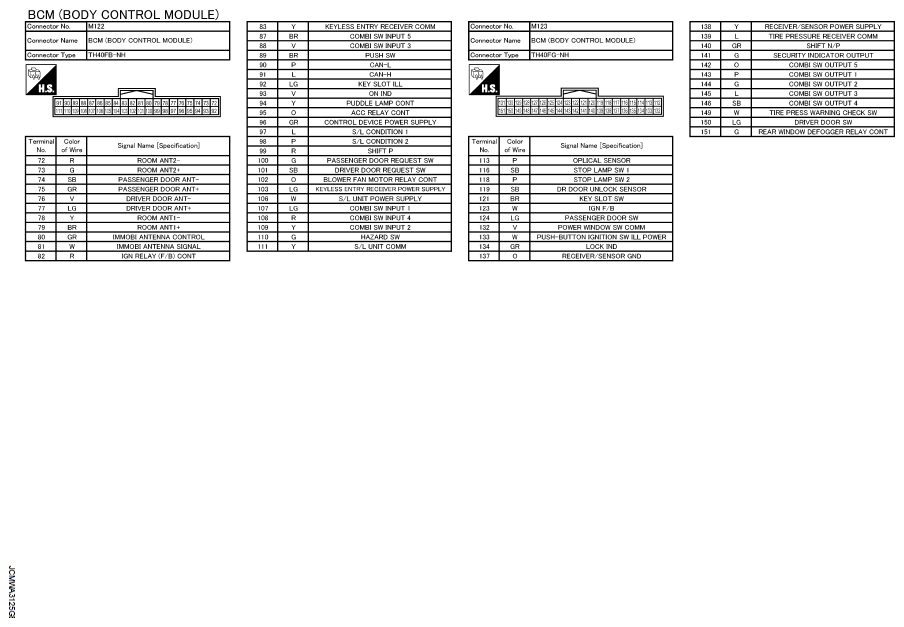

Fig 6: Identifying Body Control Module Connector Terminal (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

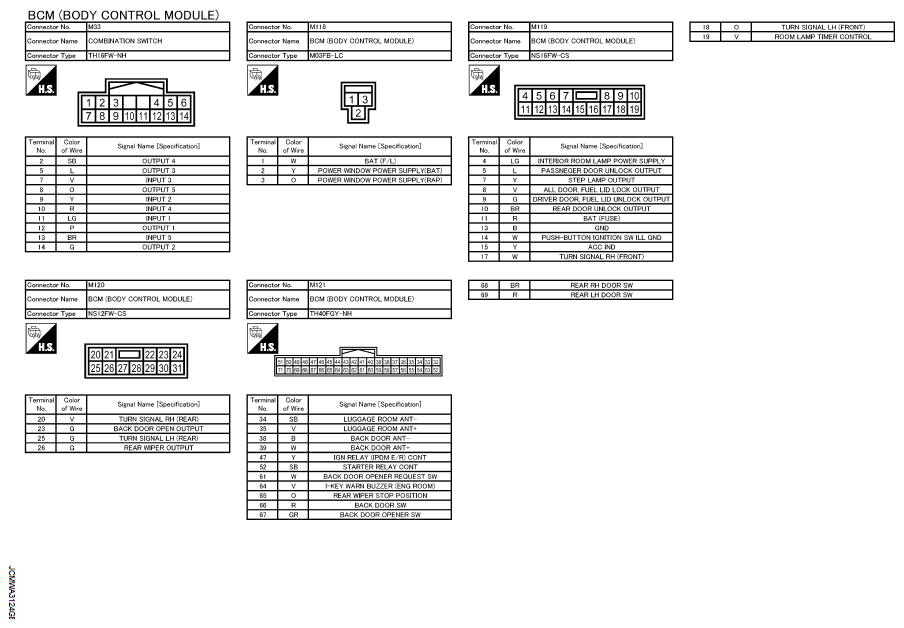

Fig 7: Identifying Body Control Module Connector Terminal (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
