MEMORY FUNCTION : Component Parts Location

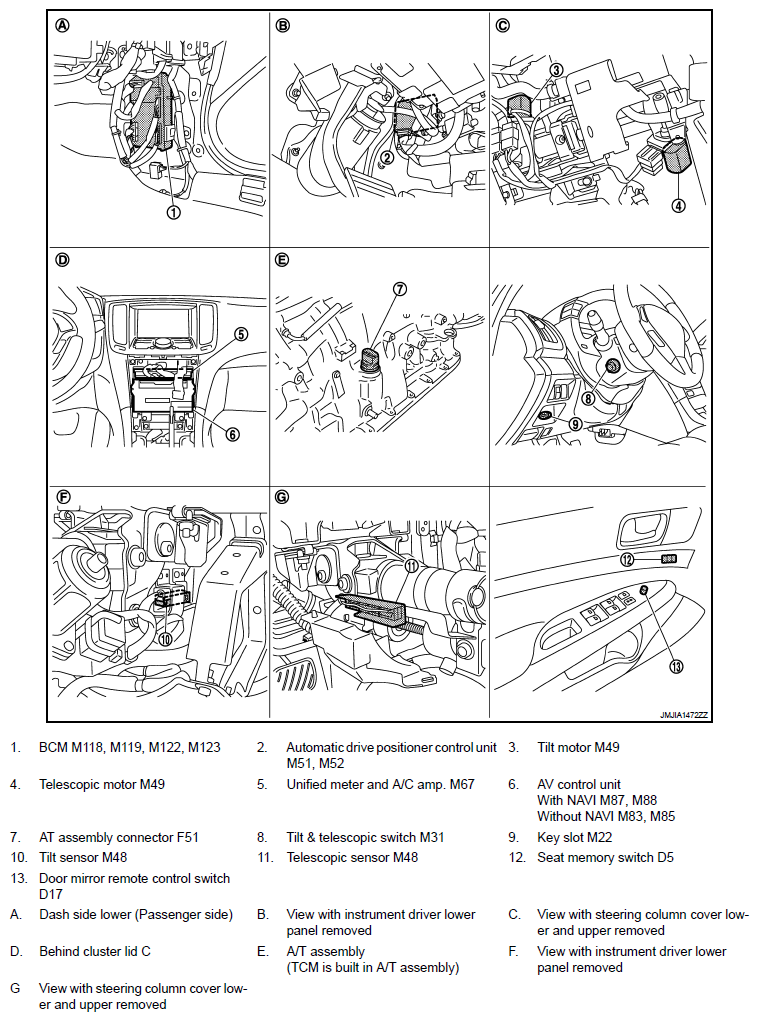

Fig 1: Identifying Memory Component Parts Location (1 Of 2)
G06294946Courtesy of NISSAN MOTOR CO., U.S.A.

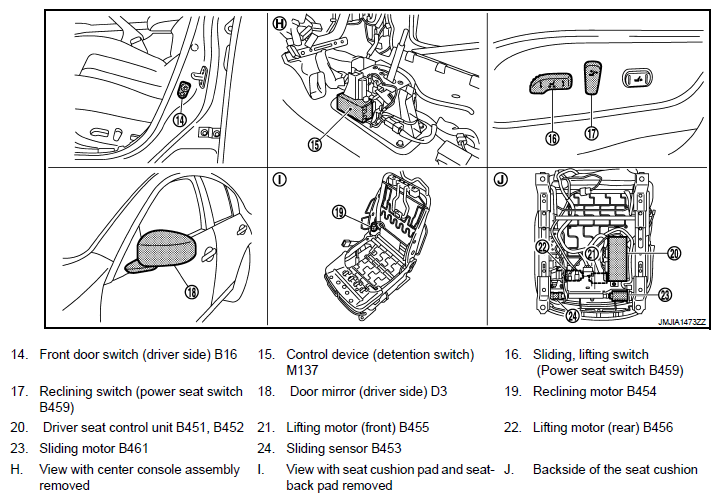

Fig 2: Identifying Memory Component Parts Location (2 Of 2)
G06294947Courtesy of NISSAN MOTOR CO., U.S.A.
