Auto Cruise Control System - DCA
>>
DCA
>>
Function Diagnosis
>>
Distance Control Assist System
>>
System Diagram
System Diagram

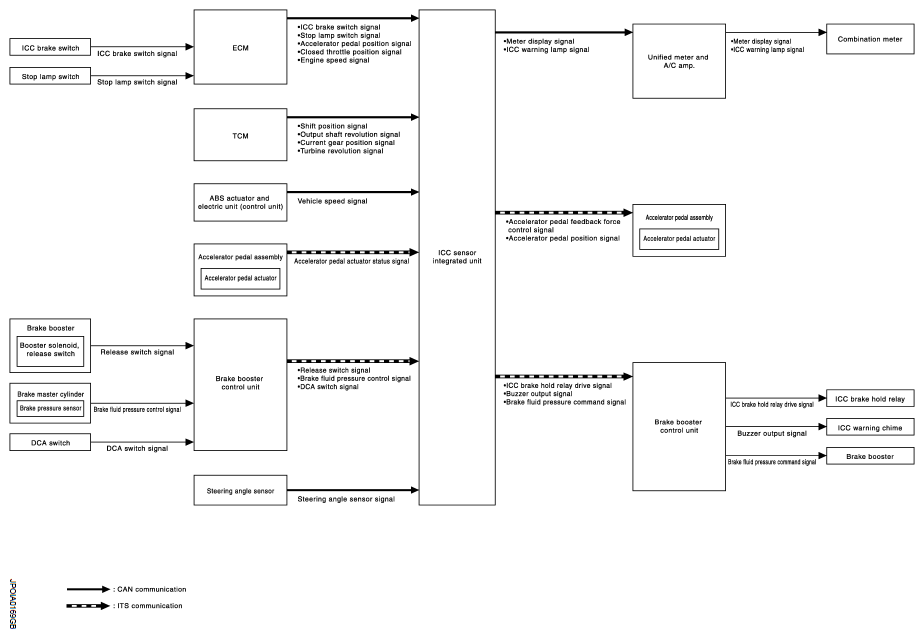

Fig 1: Distance Control Assist System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
