Home >> Infiniti >> 2008 >> M45 Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (VK45DE) - Introduction >> Evaporative Emission System >> Removal and Installation >> EVAP Canister

EVAP Canister

Tighten EVAP canister as shown in the figure.

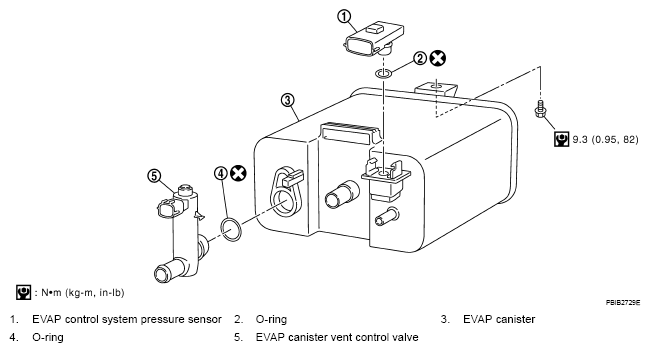

Fig 1: EVAP Canister Replacement Components With Torque Specifications

G05210297

Courtesy of NISSAN MOTOR CO., U.S.A.
