Component Description

ICC steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

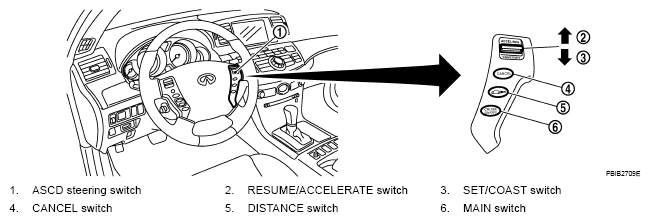

Fig 1: Identifying ASCD Steering Switch, Resume/Accelerate Switch, Set/Coast Switch, Cancel Switch And Main Switch
G05210962Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to DESCRIPTION for the ICC function.
