DTC P1217 Engine Over Temperature: Wiring Diagram

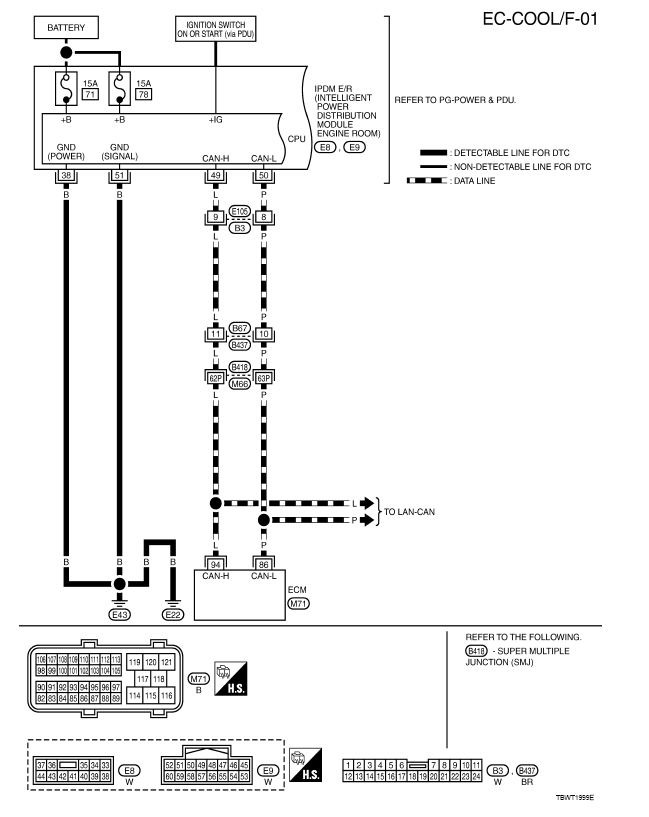

Fig 1: EC-COOL/F-01 - Wiring Diagram

G00479672

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: EC-COOL/F-02 - Wiring Diagram

G05210903

Courtesy of NISSAN MOTOR CO., U.S.A.
