DTC P0181: FTT Sensor: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

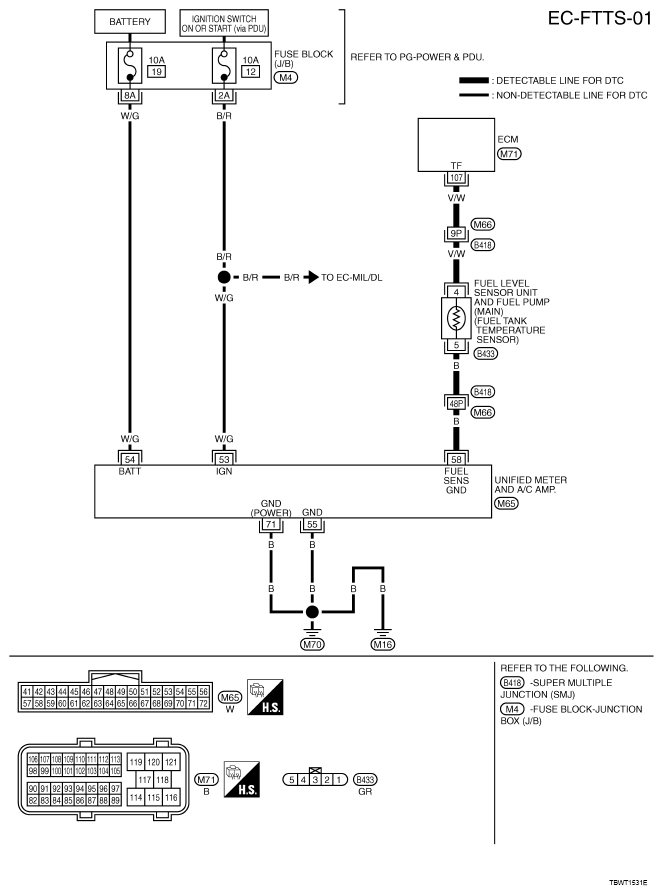

Fig 1: EC-FTTS-01 - Wiring Diagram

G05209763

Courtesy of NISSAN MOTOR CO., U.S.A.
