Section 2 (Clutch)
>>
On-Vehicle Repair
>>
Clutch Pedal
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

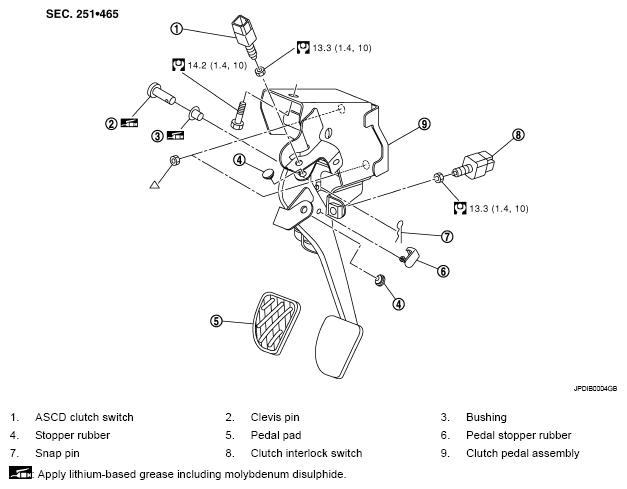

Fig 1: Exploded View Of Clutch Pedal With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
