Shaft And Gear

WARNING: This page is about a different variant/trim than selected.

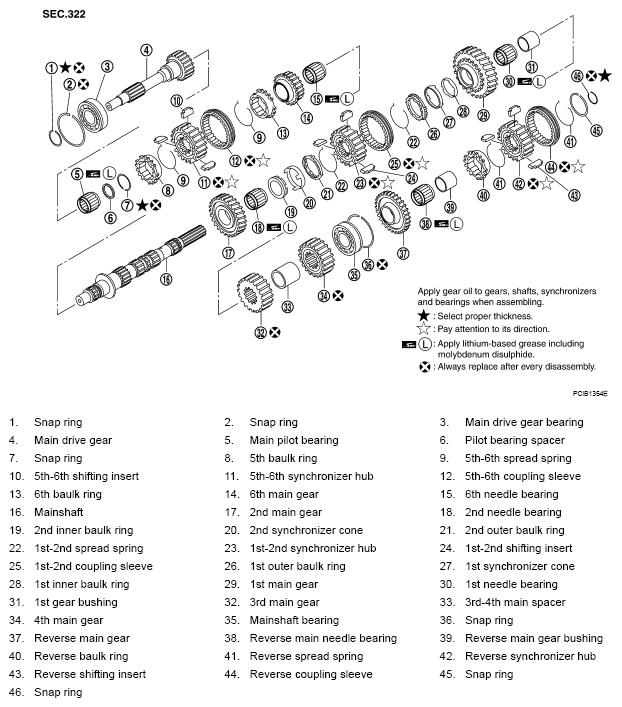

Fig 1: Exploded View Of Shaft And Gear (1 Of 2)
G05733800Courtesy of NISSAN MOTOR CO., U.S.A.

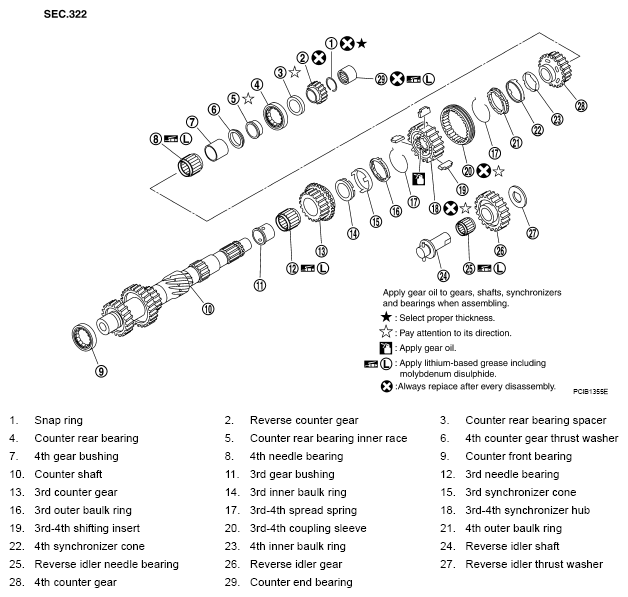

Fig 2: Exploded View Of Shaft And Gear (2 Of 2)
G05733801Courtesy of NISSAN MOTOR CO., U.S.A.
