Wiring Diagram - POWER WINDOW CONTROL SYSTEM -

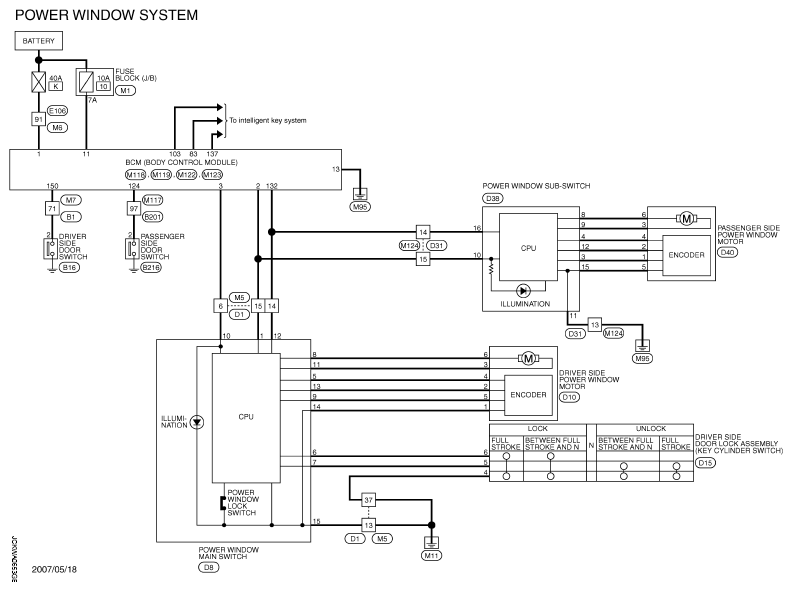

Fig 1: Power Window Control System - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

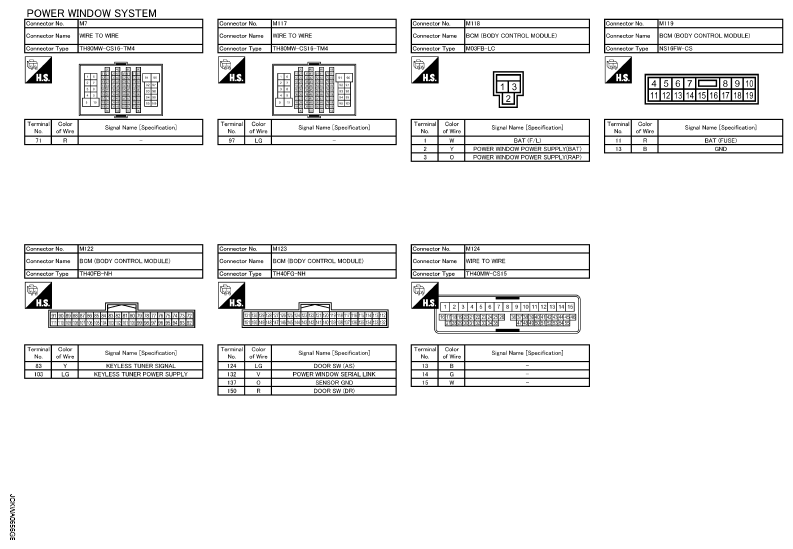

Fig 2: Identifying Power Window System Connectors Pins (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

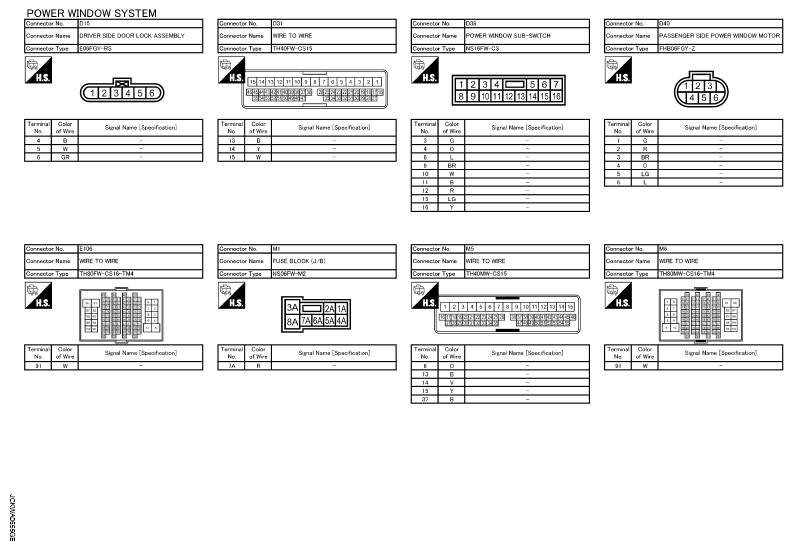

Fig 3: Identifying Power Window System Connectors Pins (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

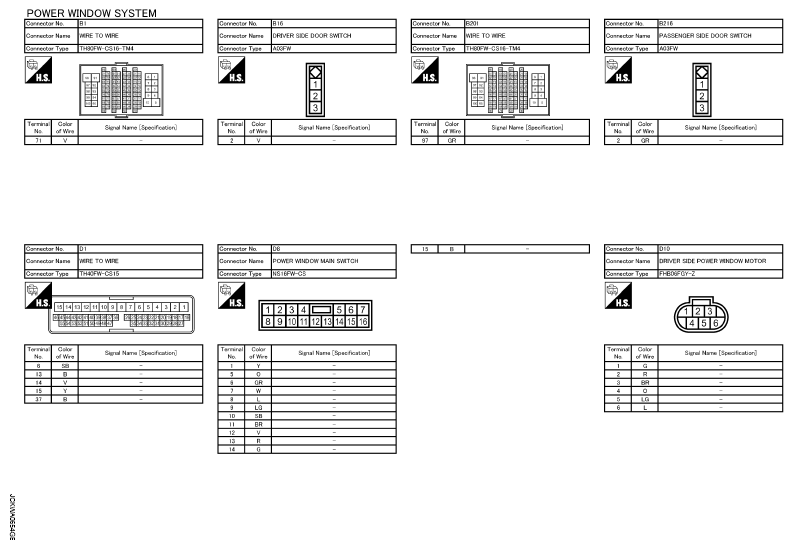

Fig 4: Identifying Power Window System Connectors Pins (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
