MEMORY FUNCTION : Component Parts Location

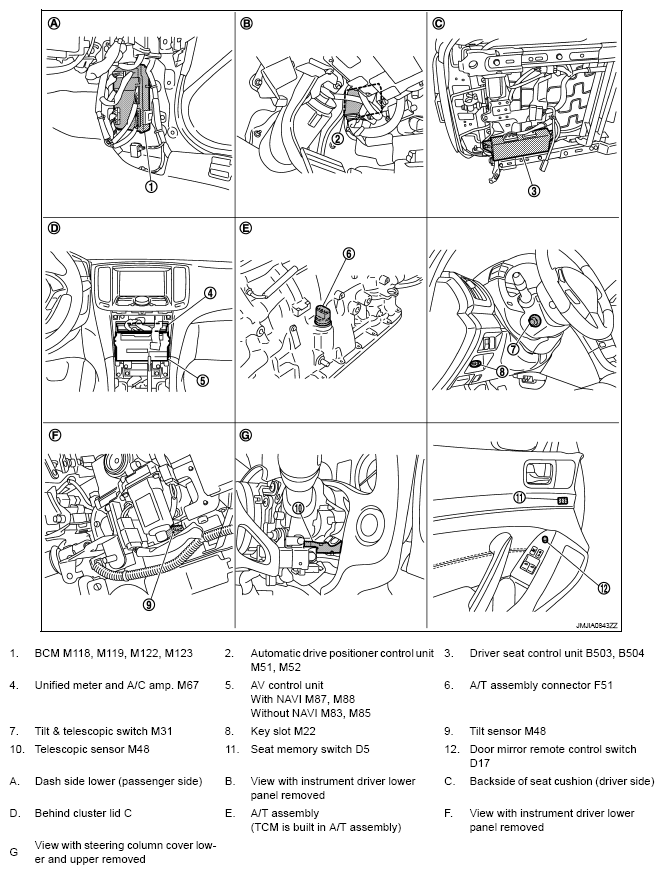

Fig 1: Identifying Memory Function Component Location (1 Of 3)
G05735923Courtesy of NISSAN MOTOR CO., U.S.A.

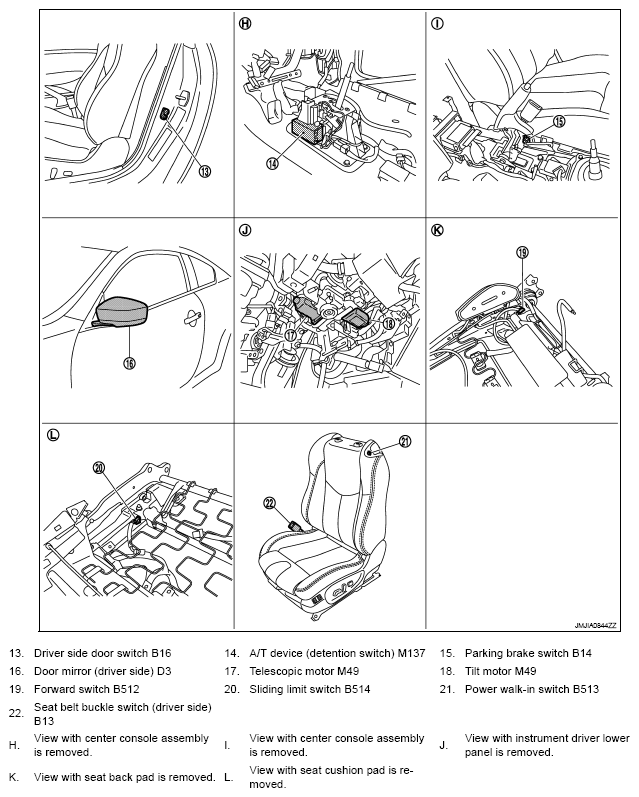

Fig 2: Identifying Memory Function Component Location (2 Of 3)
G05735924Courtesy of NISSAN MOTOR CO., U.S.A.

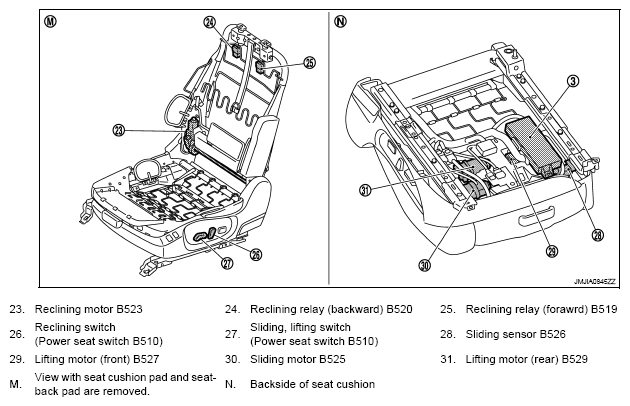

Fig 3: Identifying Memory Function Component Location (3 Of 3)
G05735925Courtesy of NISSAN MOTOR CO., U.S.A.
