Overall Sequence

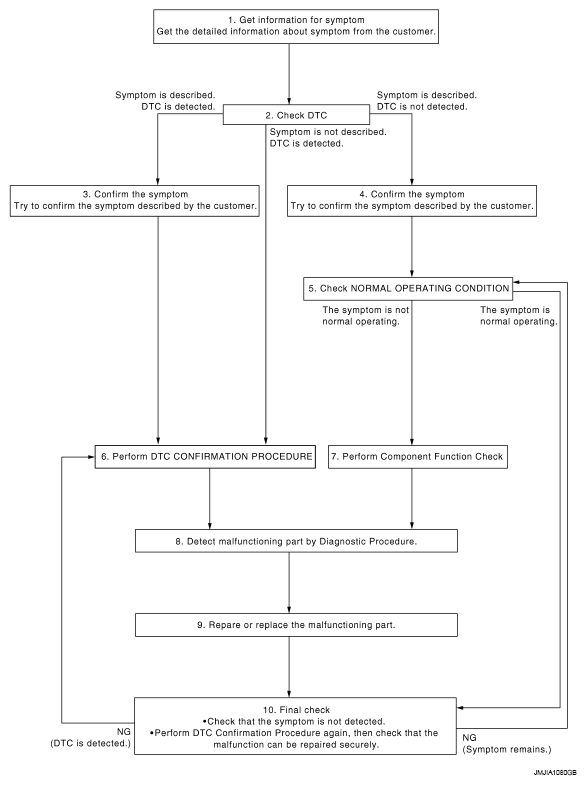

Fig 1: Diagnosis And Repair Work Flow Chart

G05735909

Courtesy of NISSAN MOTOR CO., U.S.A.
