Center Console (M/T Models)

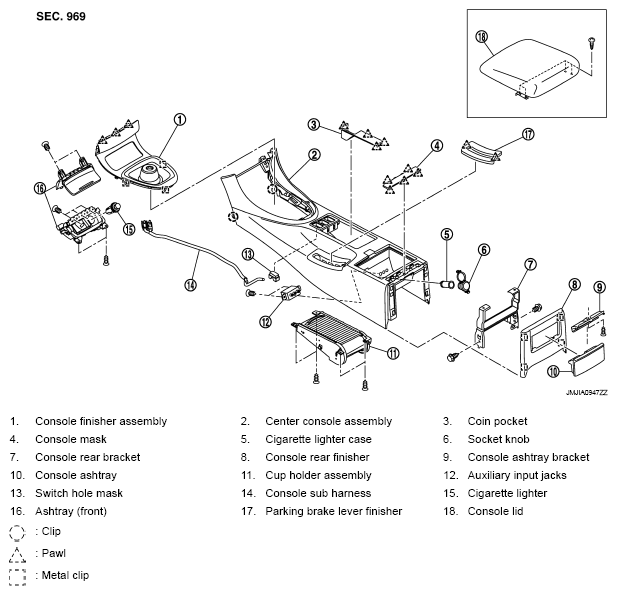

Fig 1: Exploded View Of Center Console (M/T Models)

G05735798

Courtesy of NISSAN MOTOR CO., U.S.A.
