Home
>>
Infiniti
>>
2008
>>
G35 x
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio, Visual & Navigation System
>>
Base Audio With Navigation
>>
Function Diagnosis
>>
Multi Av System
>>
Component Parts Location
Component Parts Location

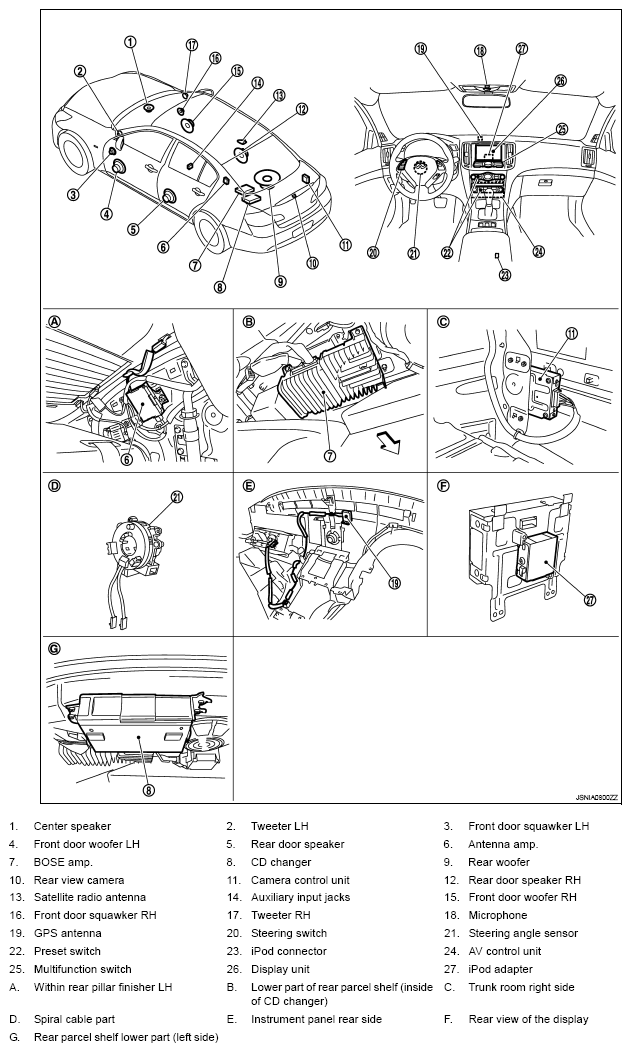

Fig 1: Identifying Multi AV System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
