AWD : Exploded View

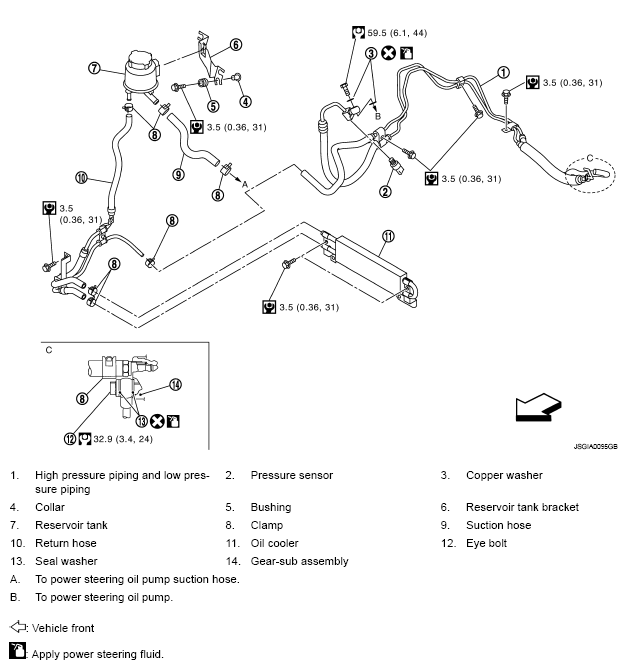

Fig 1: Exploded View Of Hydraulic Line - AWD With Torque Specifications

G05224502

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
