Driver's Seat

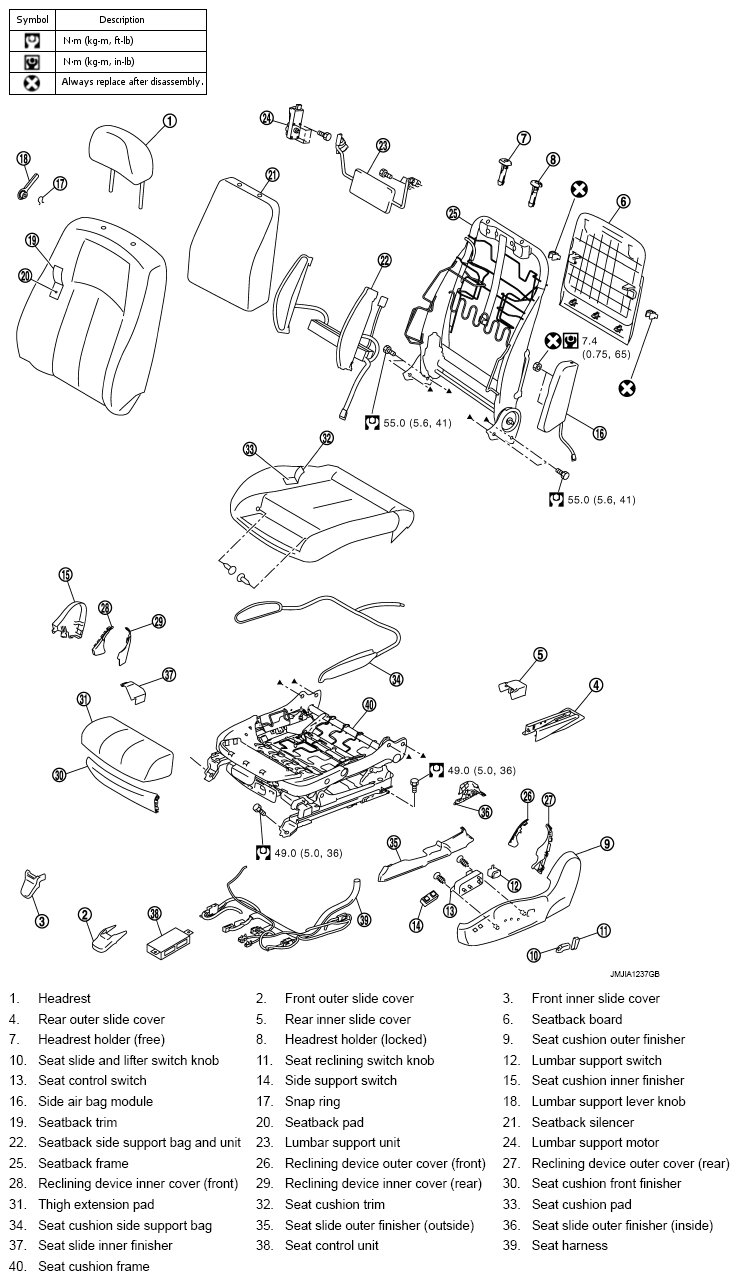

Fig 1: Exploded View Of Front Seat - Driver Seat With Torque Specifications

G00468576

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
