MEMORY FUNCTION : Component Parts Location

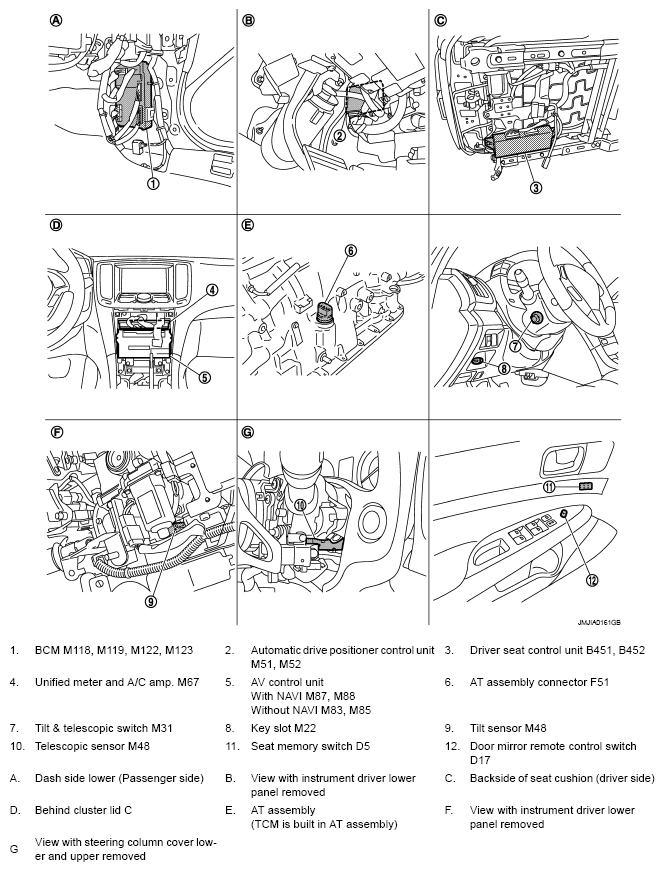

Fig 1: Identifying Memory Function Component Parts Location (1 Of 3)
G05226263Courtesy of NISSAN MOTOR CO., U.S.A.

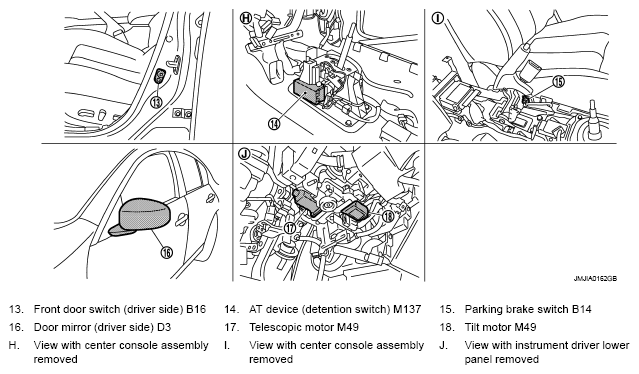

Fig 2: Identifying Memory Function Component Parts Location (2 Of 3)
G05226264Courtesy of NISSAN MOTOR CO., U.S.A.

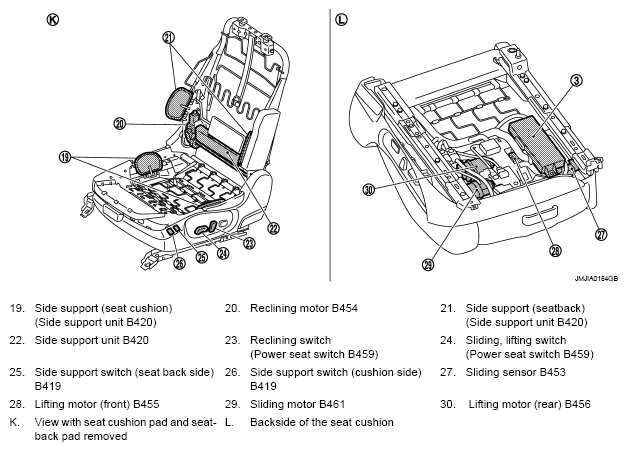

Fig 3: Identifying Memory Function Component Parts Location (3 Of 3)
G05226265Courtesy of NISSAN MOTOR CO., U.S.A.
