DTC P0181 FTT Sensor: Wiring Diagram

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

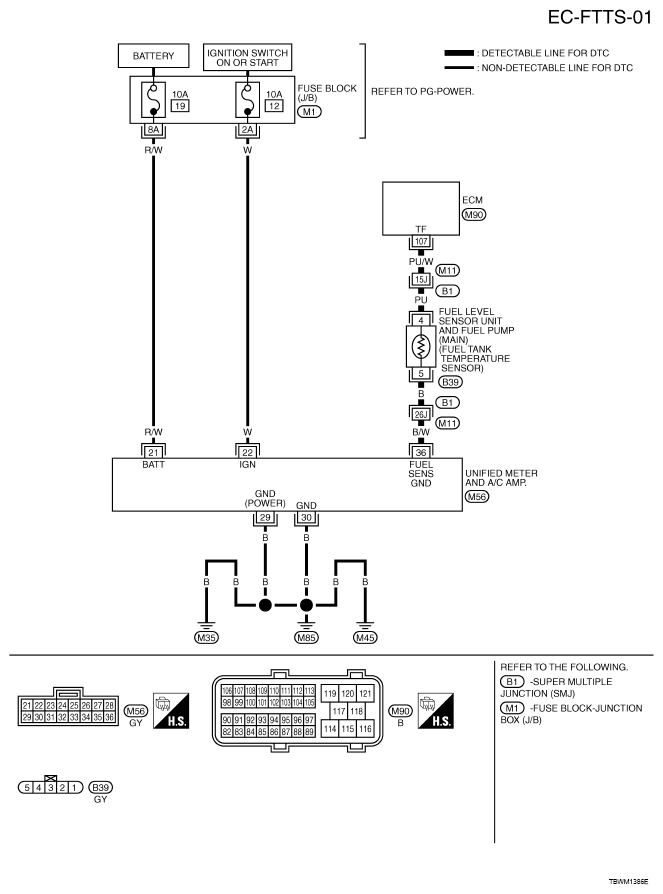

Fig 1: EC-FTTS-01 - Wiring Diagram

G05216538

Courtesy of NISSAN MOTOR CO., U.S.A.
