AWD : Removal and Installation: Removal

  1. Remove control rod from control device assembly.
  2. Shift the selector lever to "N" position.
  3. Remove knob cover (A) below selector lever downward.

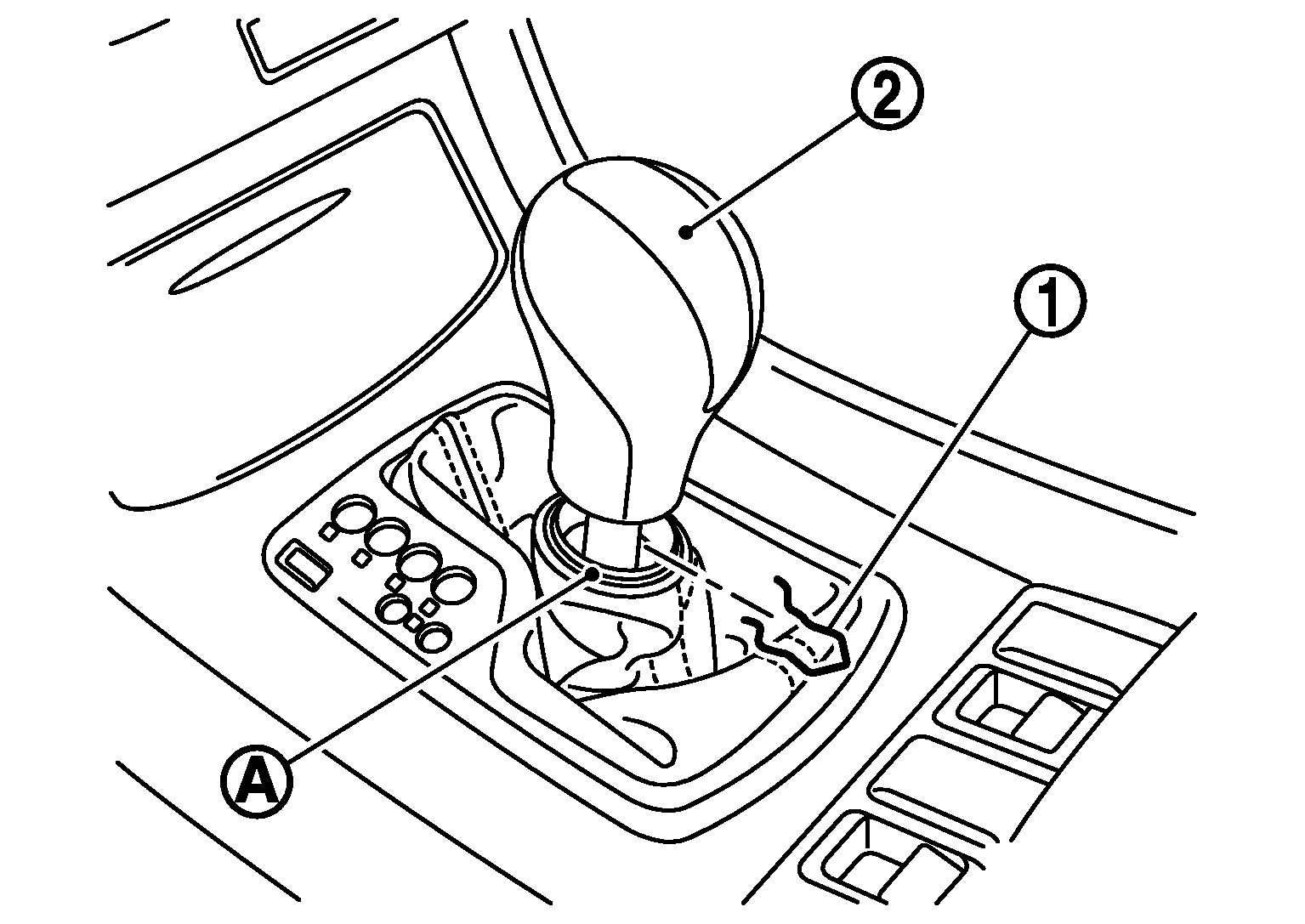

    Fig 1: Identifying Lock Pin, Selector Lever Knob And Knob Cover
    G05726781Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Pull lock pin (1) out of selector lever knob (2).
  5. Remove selector lever knob.
  6. Remove console finisher assembly and center console assembly. Refer to "EXPLODED VIEW ".
    CAUTION: When disconnecting selector lever position indicator connector from shift position switch, never twist or apply an excessive load to the connector.
  7. Remove the rear ventilator duct 1 (with rear ventilation). Refer to "REAR VENTILATOR DUCT 2 : EXPLODED VIEW ".
  8. Disconnect control device harness connector.
  9. Remove harness clips from control device assembly.
  10. Shift the selector lever to "P" position.
  11. Move passenger's seat to the end.
  12. Remove control device assembly mounting bolts.
  13. Slightly lift the control device assembly (1) and slide it rightward. Then pull it out in the diagonally right direction.
    Fig 2: Identifying Control Device Assembly
    G05218596Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove selector lever position indicator from console finisher assembly.
    1. Remove ashtray (front) (1) from console finisher assembly.
      Fig 3: Identifying Ashtray (Front)
      G05726788Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Remove insert finisher (1) from console finisher assembly.
      Fig 4: Identifying Insert Finisher
      G05726789Courtesy of NISSAN MOTOR CO., U.S.A.

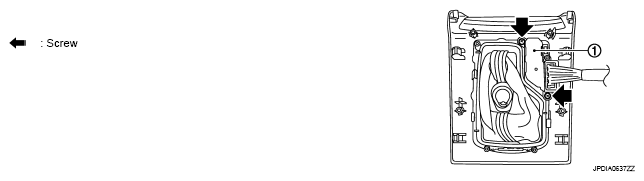

    3. Remove the selector lever position indicator (1).
      Fig 5: Locating Selector Lever Position Indicator
      G05726790Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove adapter from control device assembly.
  16. Remove dust cover and dust cover plate from control device assembly.
  17. Remove dust cover plate from dust cover.
  18. Remove shift lock unit from control device assembly.
  19. Remove bracket from vehicle floor panel.
