AWD : Exploded View
AWD : Exploded View

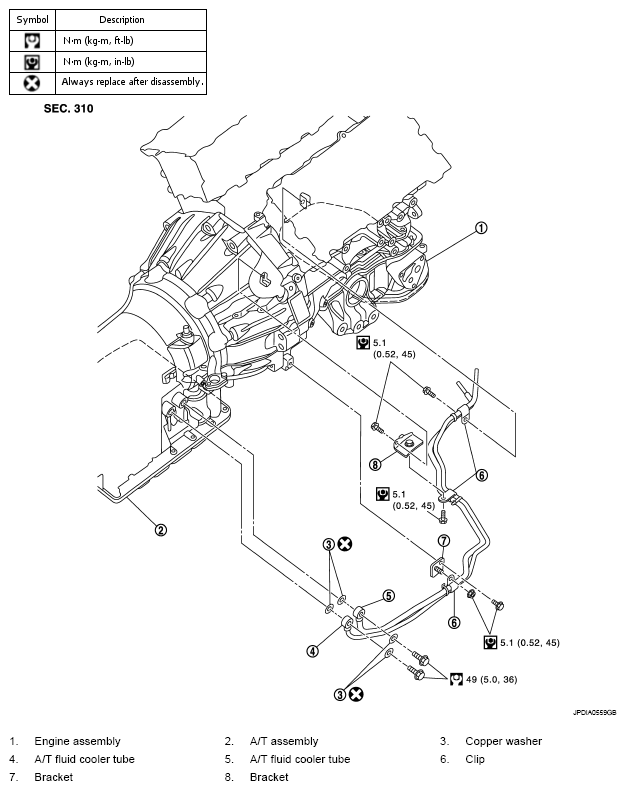

Fig 1: Exploded View Of A/T Fluid Cooler Tube With Torque Specifications - AWD
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
