Front Seat Belt
>>
Seat Belt Retractor
>>
Exploded View
Exploded View

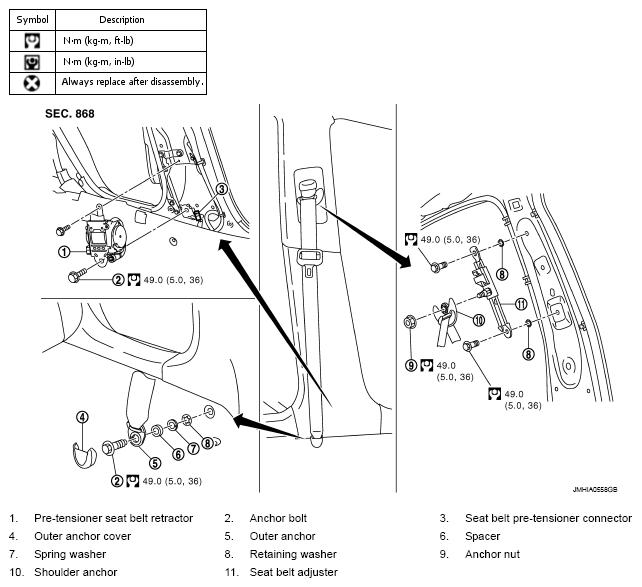

Fig 1: Exploded View Of Seat Belt Retractor With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the figure.
