AV Control Unit (With Navi) Connector End View (M372)

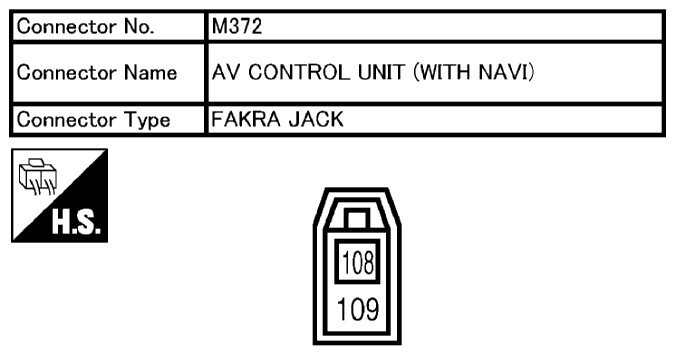

Fig 1: AV Control Unit (With Navi) Connector End View (M372)

G10627980

Courtesy of NISSAN NORTH AMERICA, INC.
