Component Inspection

With CONSULT-III

1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.
4. Turn ignition switch ON.
5. Select "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-III.
6. Touch "Qd" and "Qu" on CONSULT-III screen to adjust "PURG VOL CONT/V" opening and check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.
   AIR PASSAGE CONTINUITY SPECIFICATIONS



   Condition (PURG VOL CONT/V value)	Air passage continuity between (A) and (B)
   100%	Existed
   0%	Not existed

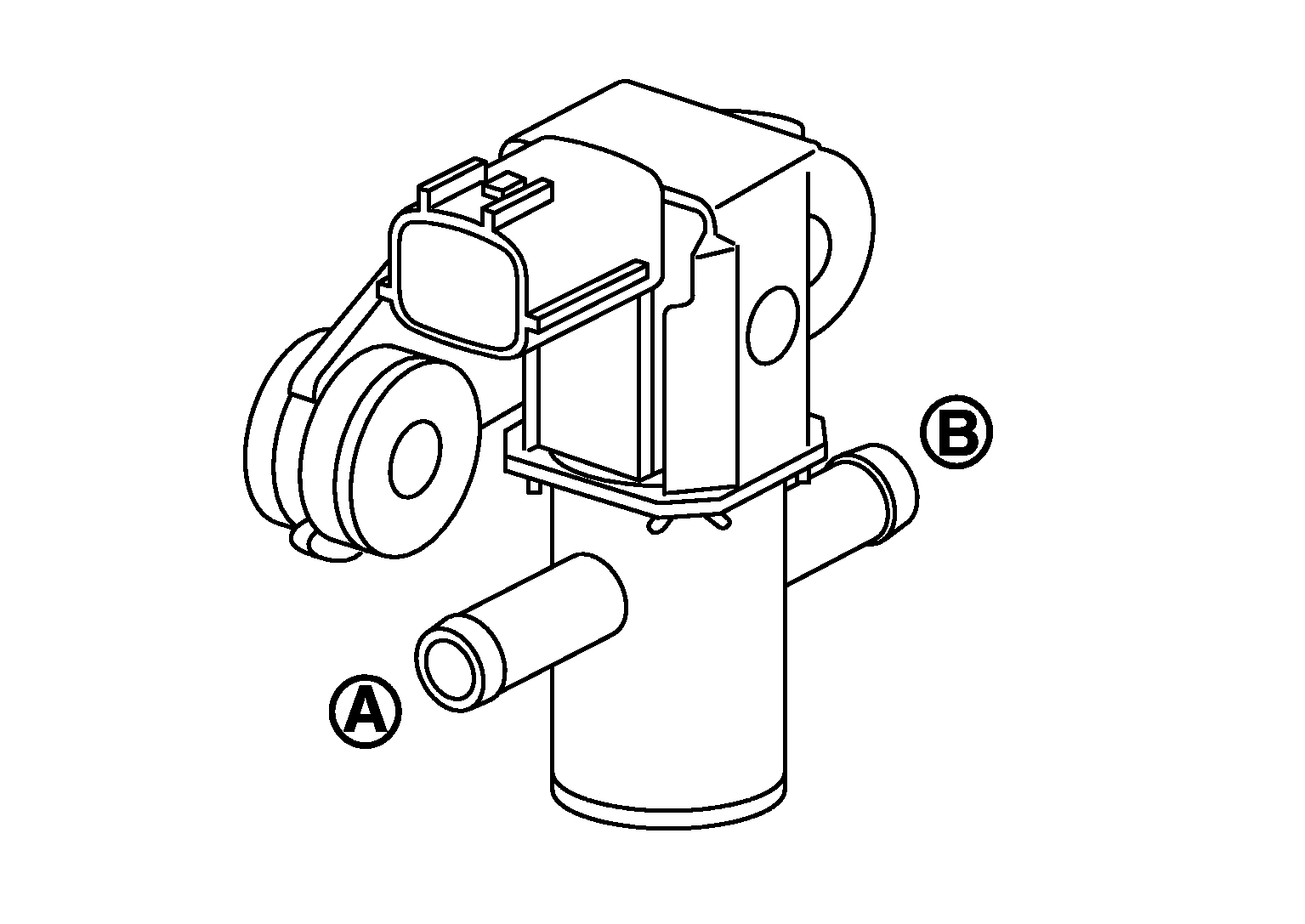

   Fig 1: Checking EVAP Canister Purge Volume Control Solenoid Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-III

1. Turn ignition switch OFF.
2. Disconnect EVAP canister purge volume control solenoid valve harness connector.
3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.
4. Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.
   AIR PASSAGE CONTINUITY SPECIFICATIONS



   Condition	Air passage continuity between (A) and (B)
   12V direct current supply between terminals 1 and 2	Existed
   No supply	Not existed

   Fig 2: Checking EVAP Canister Purge Volume Control Solenoid Valve

   Courtesy of NISSAN MOTOR CO., U.S.A.

Is the inspection result normal?

YES: INSPECTION END

NO: Replace EVAP canister purge volume control solenoid valve
