Home >> Infiniti >> 2008 >> EX35 Base, AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Automatic Drive Positioner >> Function Diagnosis >> Automatic Drive Positioner System >> Memory Function >> MEMORY FUNCTION : Component Parts Location

MEMORY FUNCTION : Component Parts Location

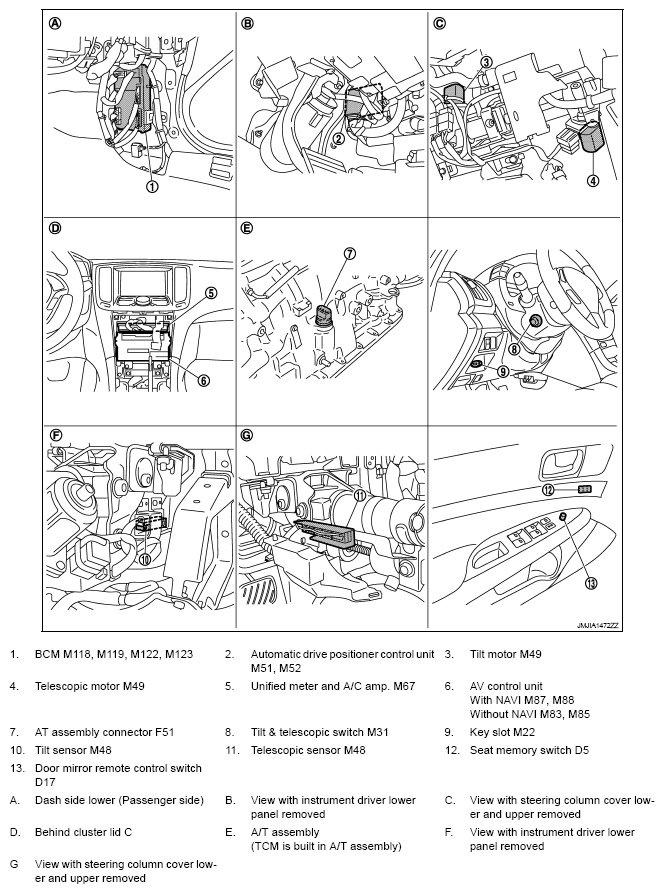

Fig 1: Identifying Automatic Drive Positioner System Component Parts Location (1 Of 2)
G05727970Courtesy of NISSAN MOTOR CO., U.S.A.

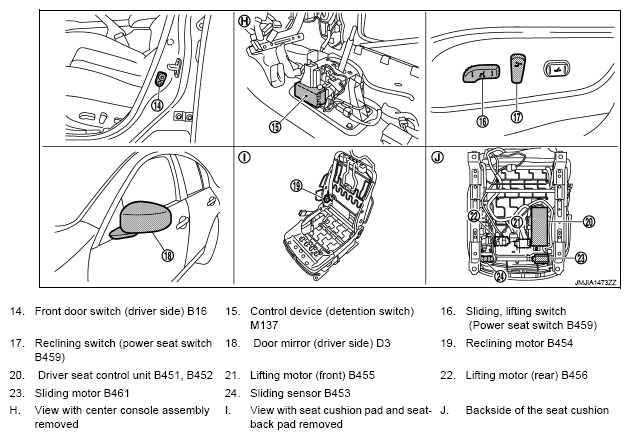

Fig 2: Identifying Automatic Drive Positioner System Component Parts Location (2 Of 2)
G05727971Courtesy of NISSAN MOTOR CO., U.S.A.
