Work Flow Chart

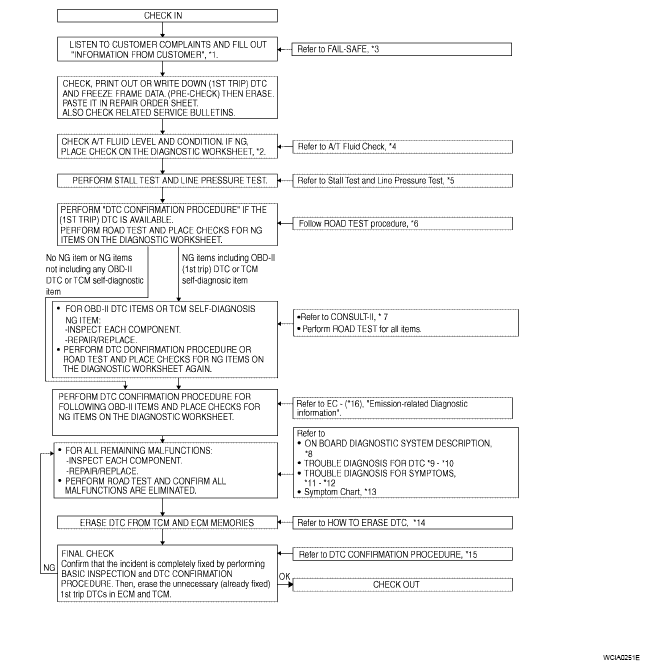

Fig 1: Troubleshooting Work Flow Chart

G05229319

TROUBLESHOOTING WORK FLOW CHART REFERENCES

*1. DIAGNOSTIC WORKSHEET

*2. DIAGNOSTIC WORKSHEET CHART

*3. TROUBLE DIAGNOSIS

*4. A/T FLUID CHECK

*5. STALL TEST , LINE PRESSURE TEST

*7. CONSULT-II FUNCTION (A/T)

*8. ON BOARD DIAGNOSTIC (OBD) SYSTEM

*9. DTC U1000 CAN COMMUNICATION LINE

*10. TOW MODE SWITCH

*11. TROUBLE DIAGNOSIS FOR SYMPTOMS

*12. VEHICLE DOES NOT DECELERATE BY ENGINE BRAKE

*13. SYMPTOM CHART

*14. HOW TO ERASE DTC

*15. DTC P1846 ATF PRESSURE SWITCH 6

*16. ON BOARD DIAGNOSTIC (OBD) SYSTEM
