DTC P0117, P0118 ECT Sensor: Wiring Diagram

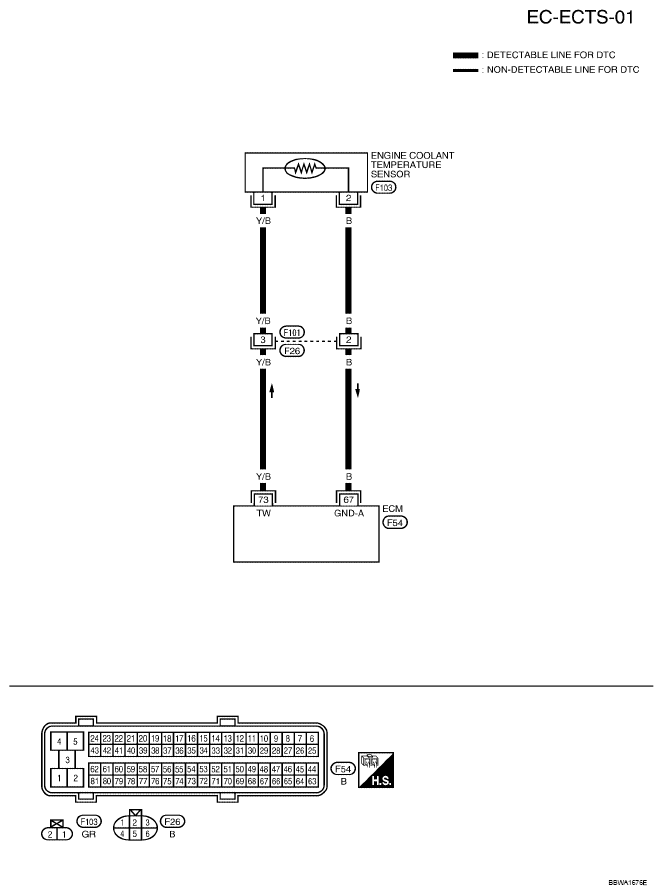

Fig 1: EC-ECTS-01 - Wiring Diagram

G04900216

Courtesy of NISSAN NORTH AMERICA, INC.
