DTC P0112, P0113 IAT Sensor: Wiring Diagram

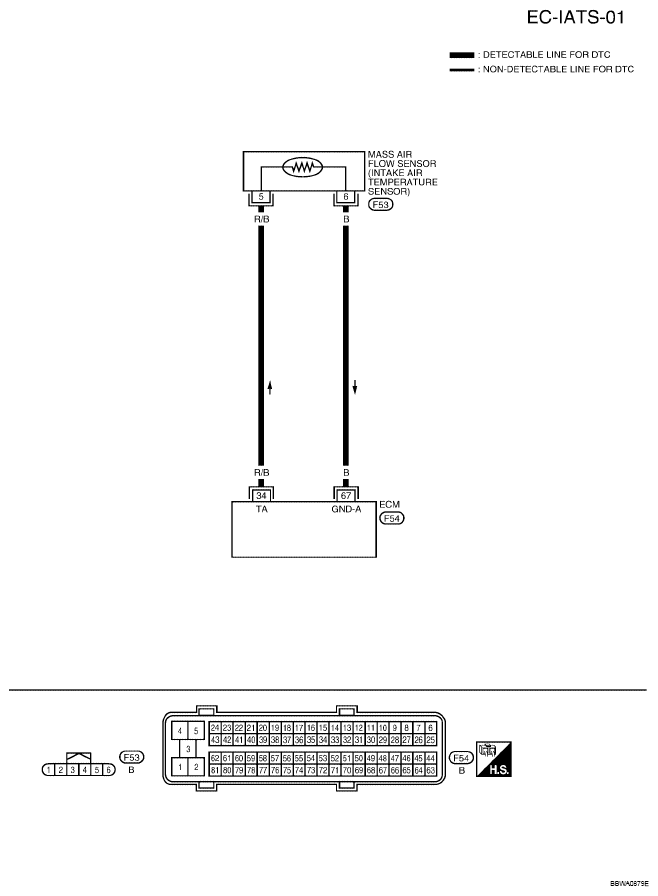

Fig 1: EC-IATS-01 - Wiring Diagram

G04900207

Courtesy of NISSAN NORTH AMERICA, INC.
