Engine Control Component Parts Location (M/T models)

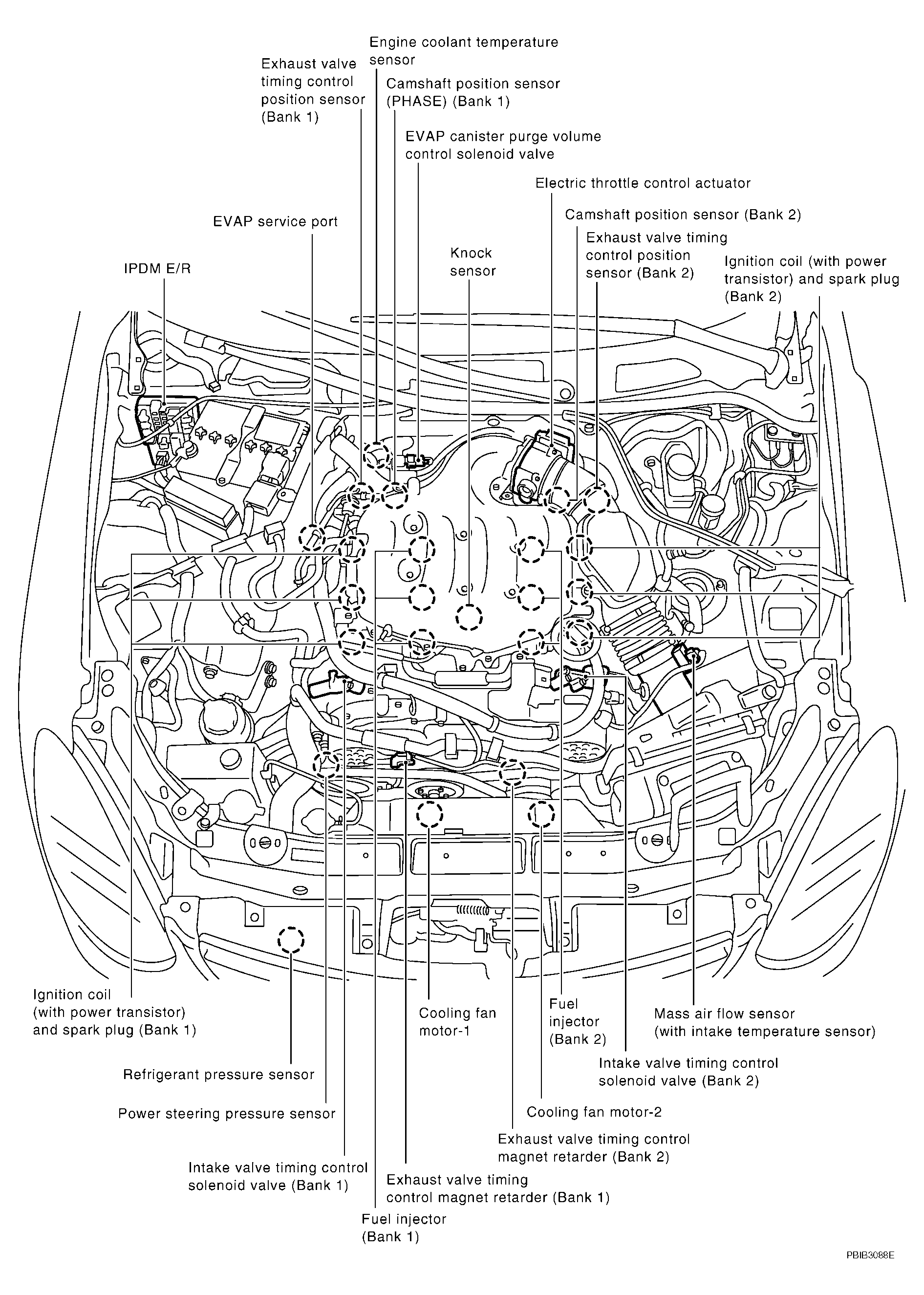

Fig 1: Identifying Engine Control Component Parts Location (M/T Models) (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control Component Parts Location (M/T Models) (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Control Component Parts Location (M/T Models) (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine Control Component Parts Location (M/T Models) (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Control Component Parts Location (M/T Models) (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Engine Control Component Parts Location (M/T Models) (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
