EVAP Canister Vent Control Valve

  1. Turn EVAP canister vent control valve counterclockwise.
  2. Remove the EVAP canister vent control valve.

Always replace O-ring with a new one.

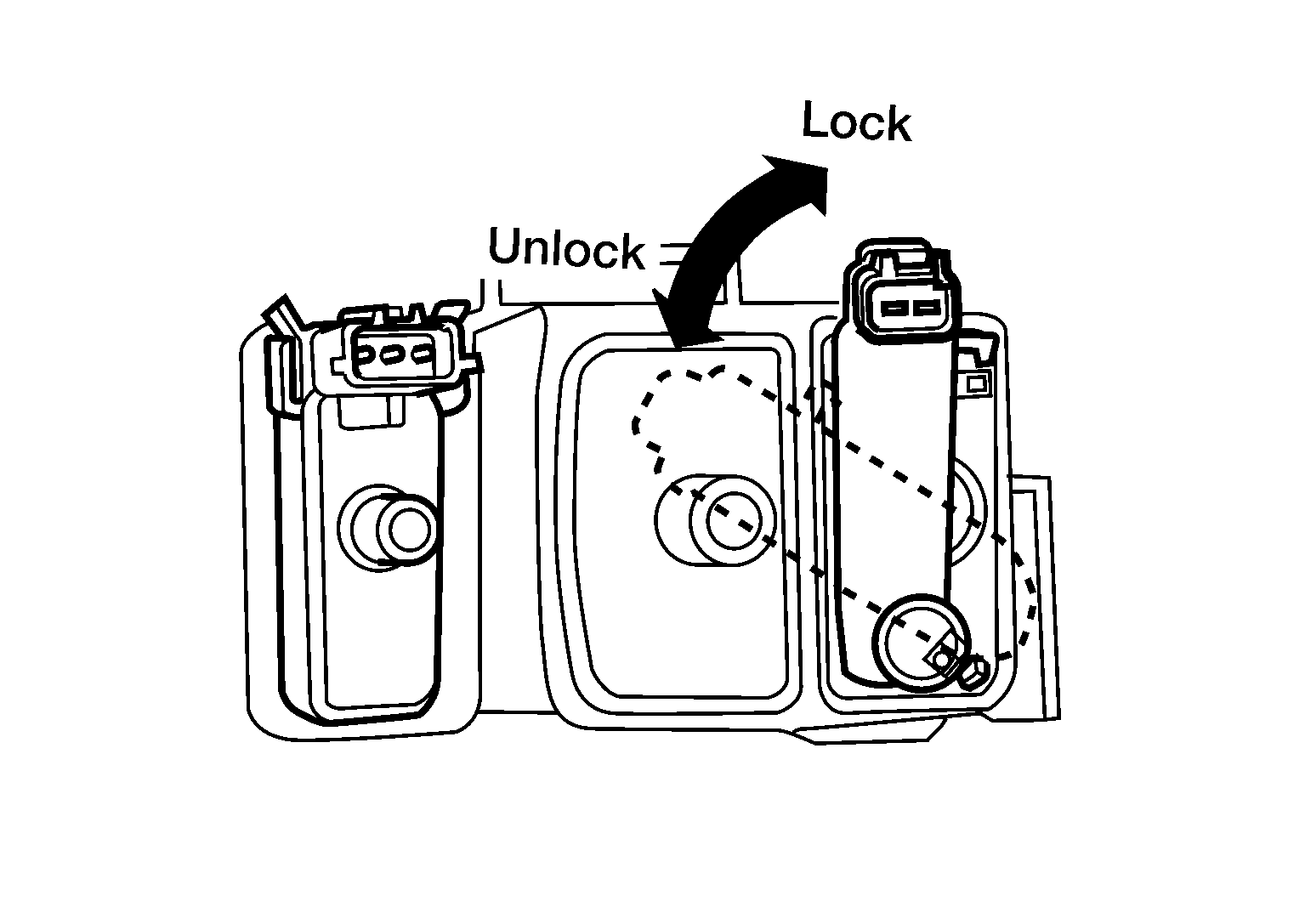

Fig 1: Turning EVAP Canister Vent Control Valve Counterclockwise
G04132524Courtesy of NISSAN MOTOR CO., U.S.A.
