Home >> Infiniti >> 2006 >> QX56 AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - DTCS U1000 To P0159 >> DTC P0117, P0118 ECT Sensor >> Wiring Diagram

DTC P0117, P0118 ECT Sensor: Wiring Diagram

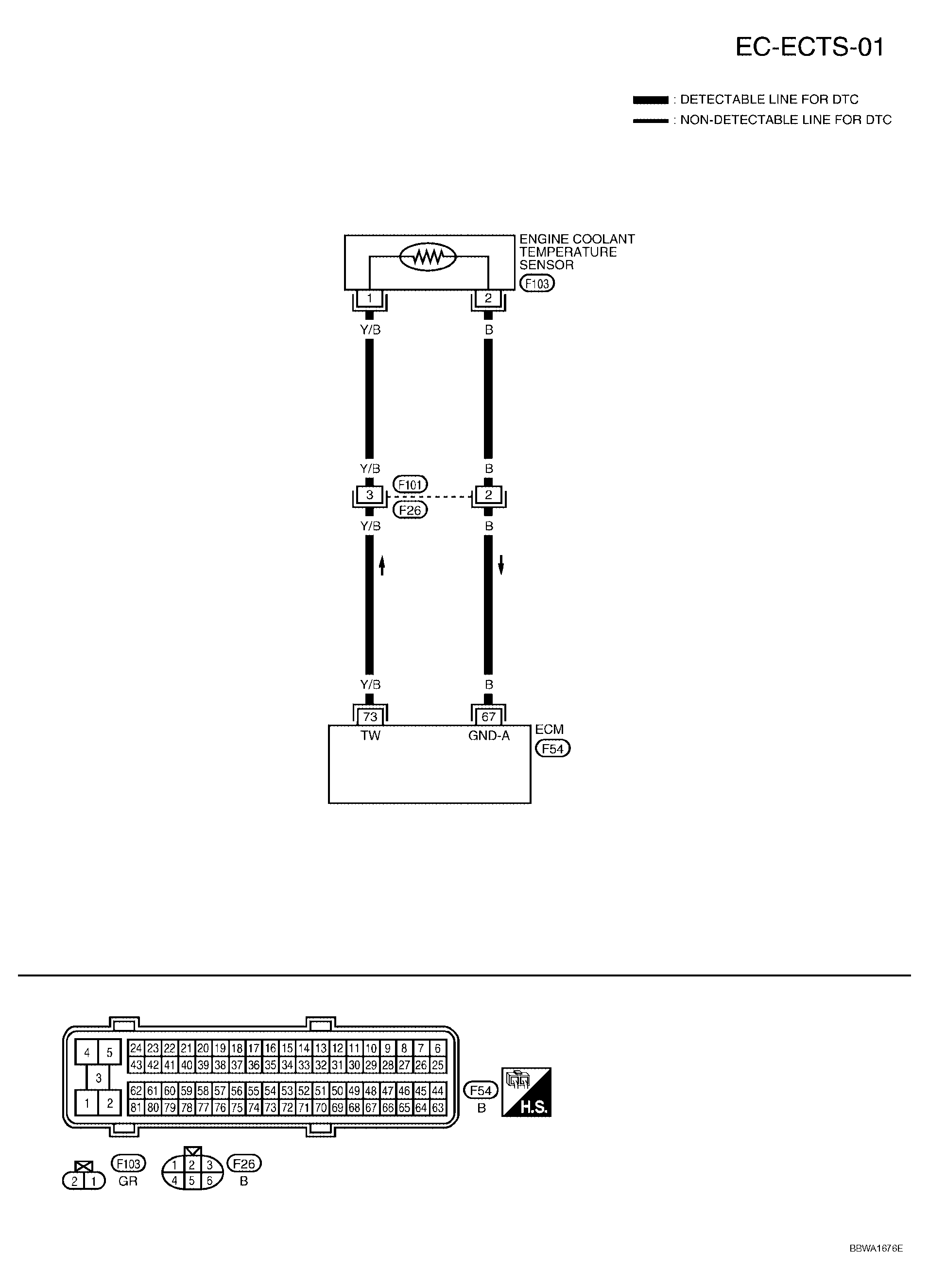

Fig 1: EC-ECTS-01 - Wiring Diagram

G04132703

Courtesy of NISSAN MOTOR CO., U.S.A.
