Camshaft Position Sensor (Phase)

  1. Loosen the fixing bolt of the sensor.
  2. Disconnect camshaft position sensor (PHASE) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

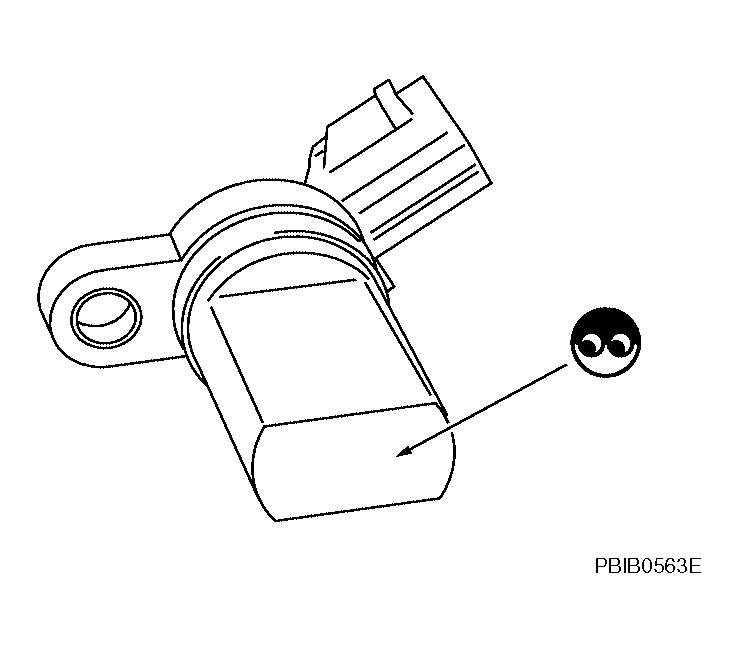

    Fig 1: Inspecting Crankshaft Position Sensor
    G04167196Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check resistance as shown in the figure.
    CAMSHAFT POSITION SENSOR (PHASE) RESISTANCE

    Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
    3(+) - 1 (-) Except 0 or [infinity]
    2 (+) - 1 (-)
    3 (+) - 2 (-)

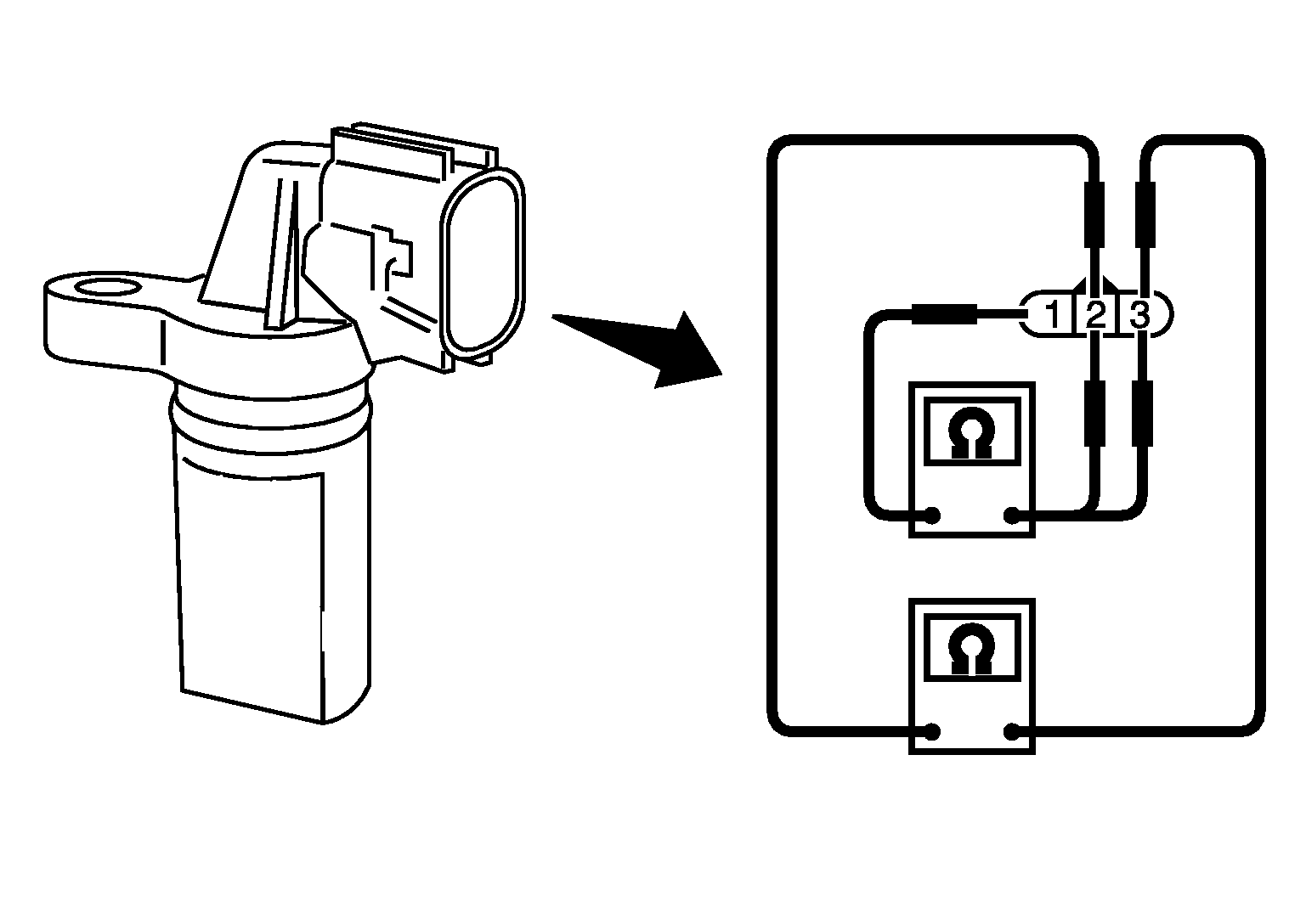

    Fig 2: Identifying Resistance Between Sensor Terminals
    G04074922Courtesy of NISSAN MOTOR CO., U.S.A.
