Infiniti
>>
2006
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Starting & Charging System
>>
Generator
>>
Trouble Diagnoses with Battery/Starting/Charging System Tester
>>
Work Flow
Work Flow

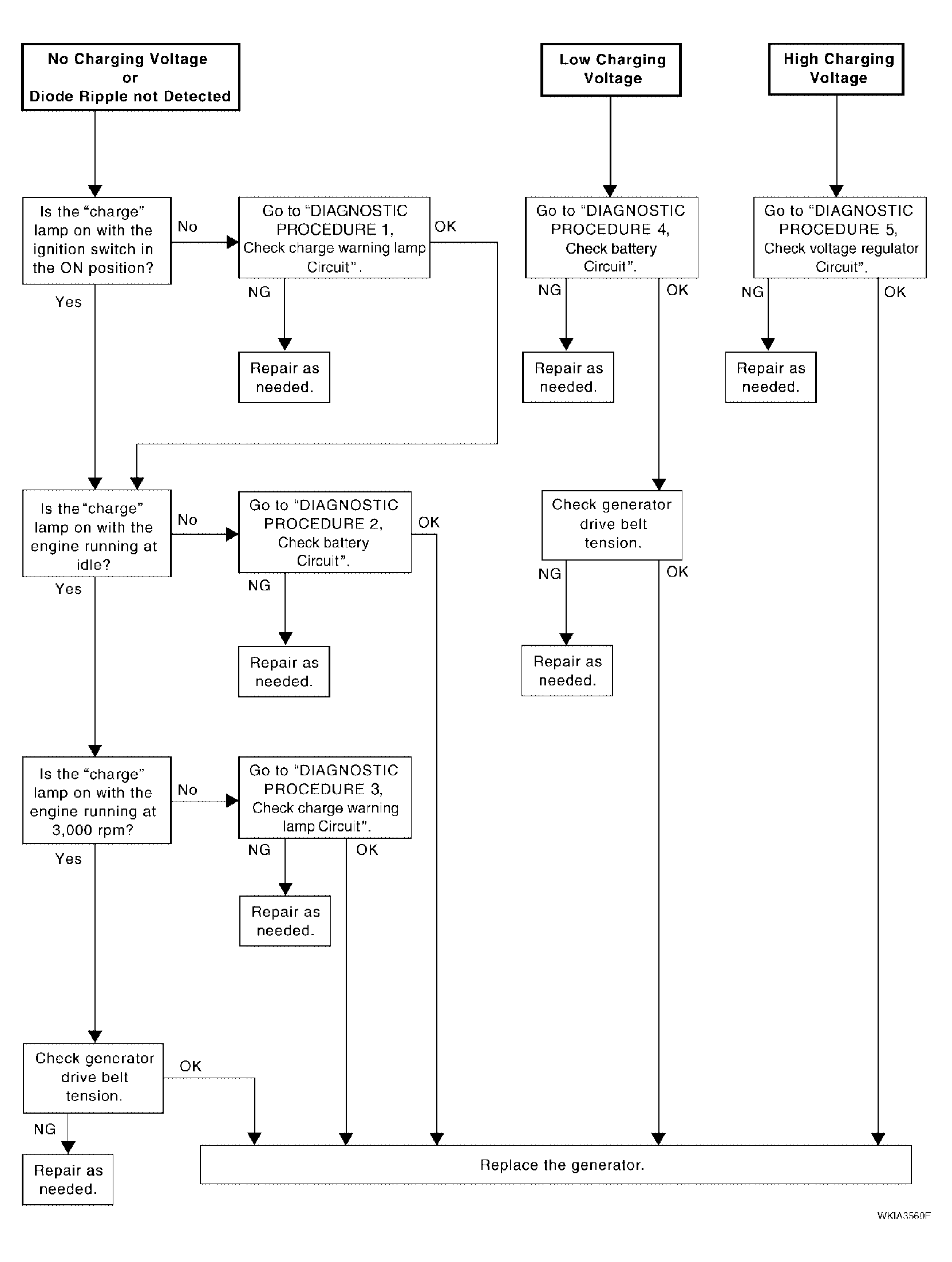

Fig 1: Charging System Work Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
