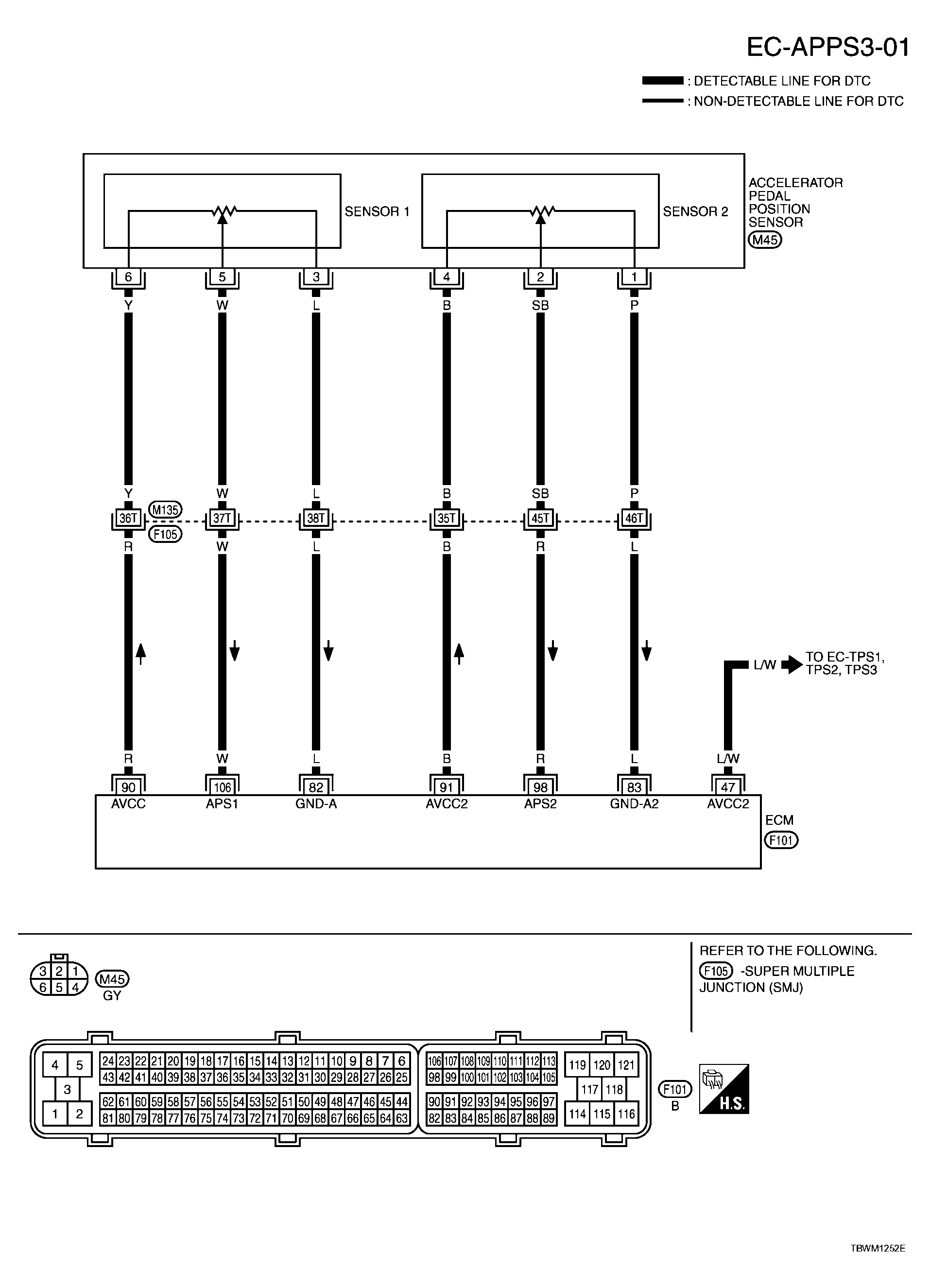

DTC P2138 App Sensor: Wiring Diagram
For wiring diagram abbreviations, see WIRING DIAGRAM ABBREVIATIONS IDENTIFICATION TABLE .
For PG-POWER, refer to SYSTEM WIRING DIAGRAMS .
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SPECIFICATION DATA REFERENCE VALUES
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 47 | L/W | Sensor power supply (Throttle position sensor) | [Ignition switch: ON] | Approximately 5V |
| 82 | L | Sensor ground (APP sensor 1) | [Engine is running]
|
Approximately 0V |
| 83 | L | Sensor ground (APP sensor 2) | [Engine is running]
|
Approximately 0V |
| 90 | R | Sensor power supply (APP sensor 1) | [Ignition switch: ON] | Approximately 5V |
| 91 | B | Sensor power supply (APP sensor 2) | [Ignition switch: ON] | Approximately 5V |
| 98 | R | Accelerator pedal position sensor 2 | [Ignition switch: ON]
|
0.15 - 0.60V |
[Ignition switch: ON]
|
1.95 - 2.40V | |||
| 106 | W | Accelerator pedal position sensor 1 | [Ignition switch: ON]
|
0.5 - 1.0V |
[Ignition switch: ON]
|
3.9 - 4.7V |
