Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body.

      Refer to "GROUND INSPECTION ".

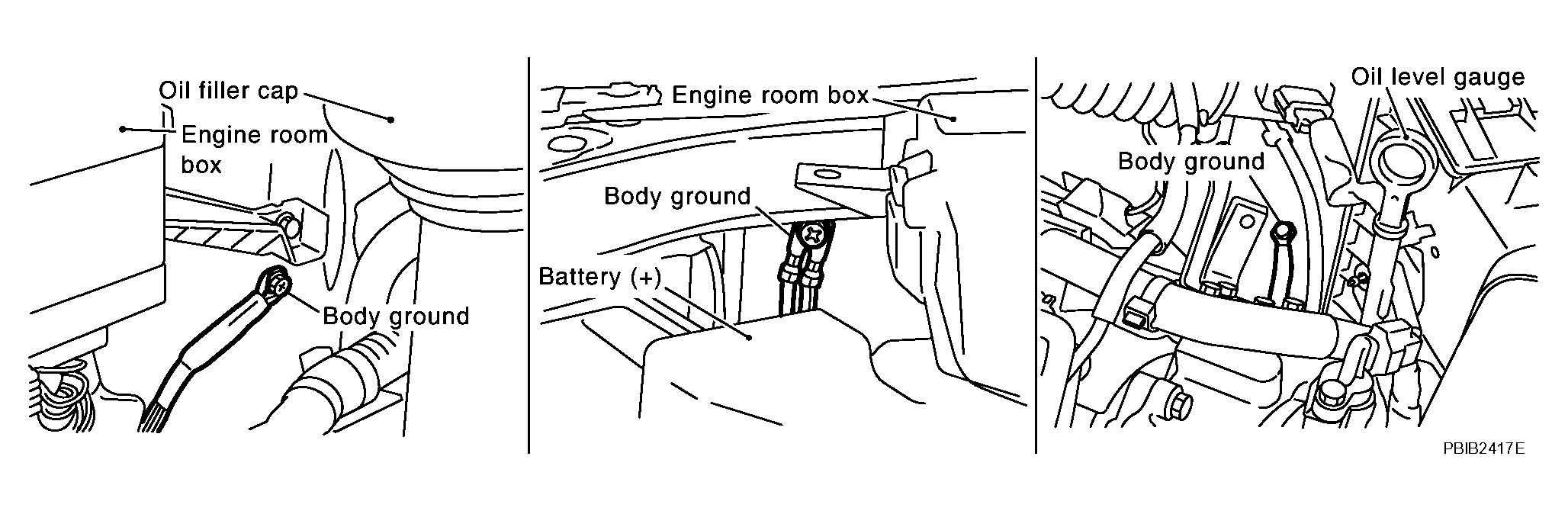

      Fig 1: Checking Ground Connections
      G04127659Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair or replace ground connections.
  2. CHECK ASCD STEERING SWITCH CIRCUIT

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "MAIN SW", "RESUME/ACC SW", "SET SW" and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.
    3. Check each item indication under the following conditions.
      ASCD STEERING SWITCH CIRCUIT

      Switch Monitor item Condition Indication
      MAIN switch MAIN SW Pressed ON
      Released OFF
      CANCEL switch CANCEL SW Pressed ON
      Released OFF
      RESUME/ACCELERATE switch RESUME/ACC SW Pressed ON
      Released OFF
      SET/COAST switch SET SW Pressed ON
      Released OFF

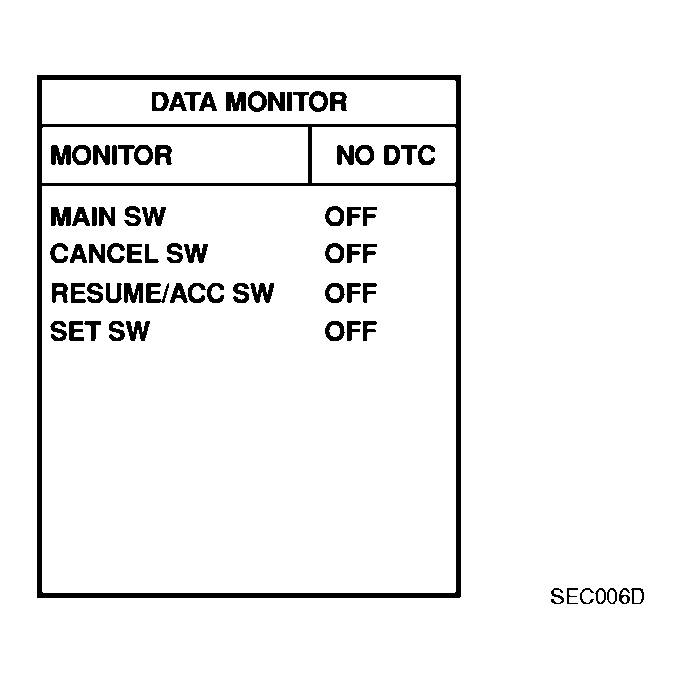

      Fig 2: CONSULT-II Display - Data Monitor
      G04127660Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 99 and ground with pressing each button.
      ECM TERMINAL 99 AND GROUND

      Switch Condition Voltage [V]
      MAIN switch Pressed Approx. 1
      Released Approx. 4
      CANCEL switch Pressed Approx. 1
      Released Approx. 4
      RESUME/ACCELERATE switch Pressed Approx. 3
      Released Approx. 4
      SET/COAST switch Pressed Approx. 2
      Released Approx. 4

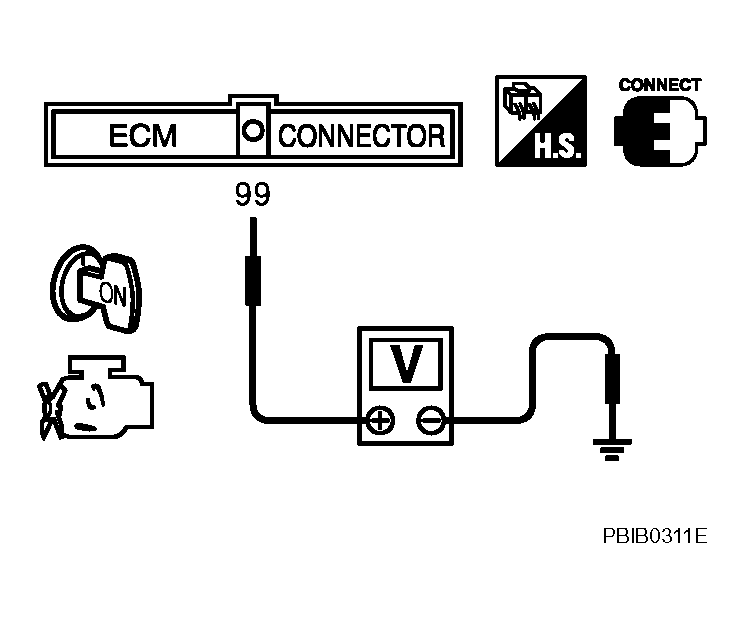

      Fig 3: Checking Voltage Between ECM Terminal 99 And Ground
      G04127661Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  8.
    2. NG: GO TO 3.
  3. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Disconnect ASCD steering switch harness connector.
    4. Check harness continuity between ASCD steering switch terminal 2 and ECM terminal 67.

      Refer to Wiring Diagram .

      Continuity should exist  .

    5. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M135, F105
    • Combination switch (spiral cable)
    • Harness for open and short between ECM and ASCD steering switch
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 99 and ASCD steering switch terminal 1. Refer to Wiring Diagram .

      Continuity should exist  .

    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  7.
    2. NG: GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M135, F105
    • Combination switch (spiral cable)
    • Harness for open and short between ECM and ASCD steering switch
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK ASCD STEERING SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 8.
    2. NG: Replace ASCD steering switch.
  8. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. : INSPECTION END
