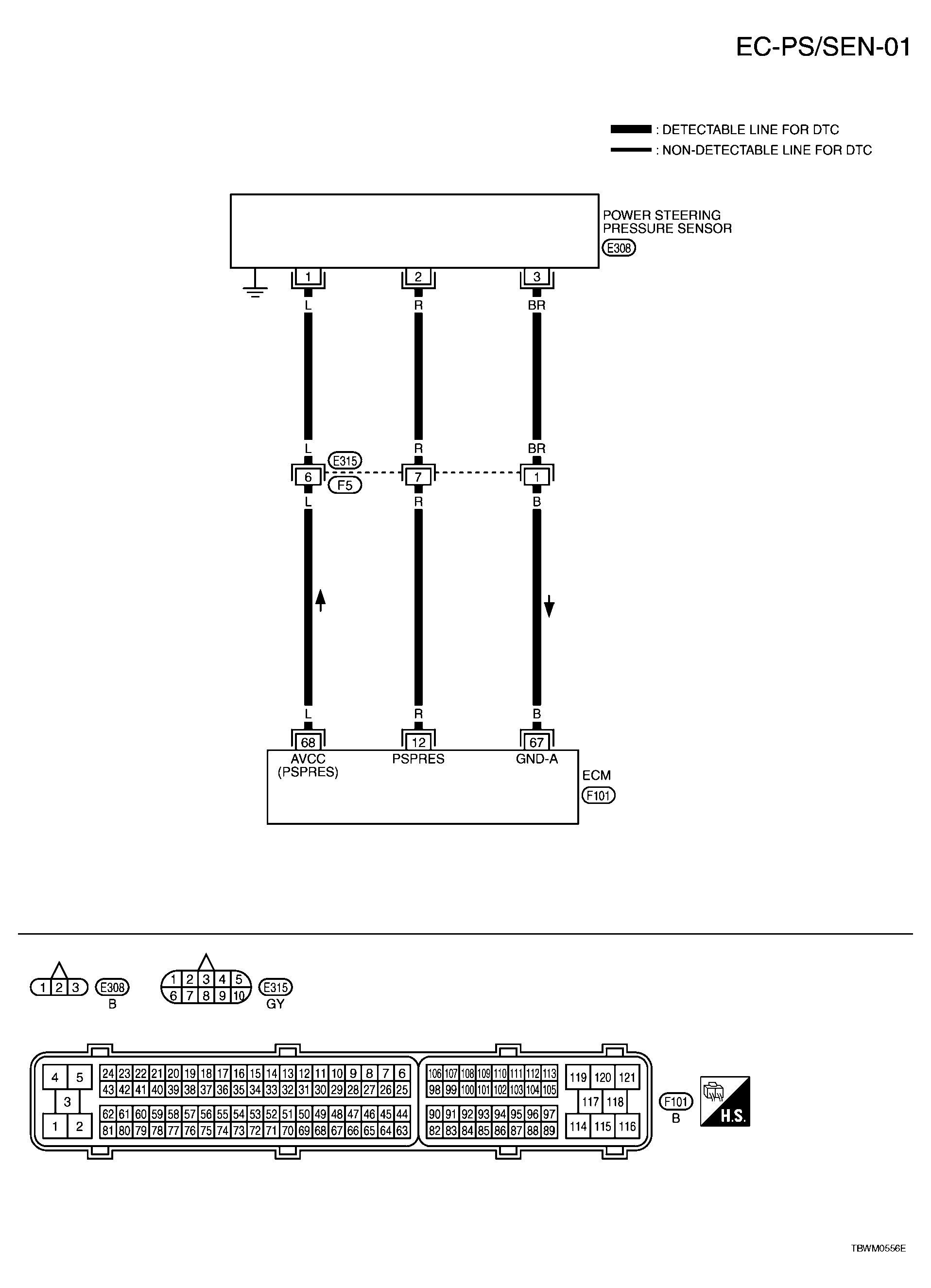

DTC P0550 PSP Sensor: Wiring Diagram
For wiring diagram abbreviations, see WIRING DIAGRAM ABBREVIATIONS IDENTIFICATION TABLE .
For PG-POWER, refer to SYSTEM WIRING DIAGRAMS .
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
INPUT/OUTPUT VOLTAGE CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 12 | R | Power steering pressure sensor | [Engine is running]
|
0.5-4.5V |
[Engine is running]
|
0.4-0.8V | |||
| 67 | B | Sensor ground (MAF sensor, IAT sensor, ECT sensor, FTT sensor, EVAP control system pressure sensor, PSP sensor, ICC steering switch, ASCD steering switch, Refrigerant pressure sensor) | [Engine is running]
|
Approximately 0V |
| 68 | L | Sensor power supply (Power steering pressure sensor) | [Engine is running] | Approximately 5V |
