Terminals and Reference Values for Rear Power Seat Control Unit

REAR POWER SEAT CONTROL UNIT TERMINALS AND REFERENCE VALUES

Terminal	Wire Color	Item	Signal input/output	Condition	Voltage (V) (Approx.)
2	G	BAT power supply	Input	-	Battery voltage
4	Y	Sliding motor forward signal	Output	When sliding switch forward is operated	Battery voltage
				Other than above	0
11	GY	Sliding motor backward signal	Output	When sliding switch backward is operated	Battery voltage
				Other than above	0
15	B	Ground	-	-	0
18	BR/W	Sliding switch backward signal	Input	When sliding switch backward is operated	0
				Other than above	Battery voltage

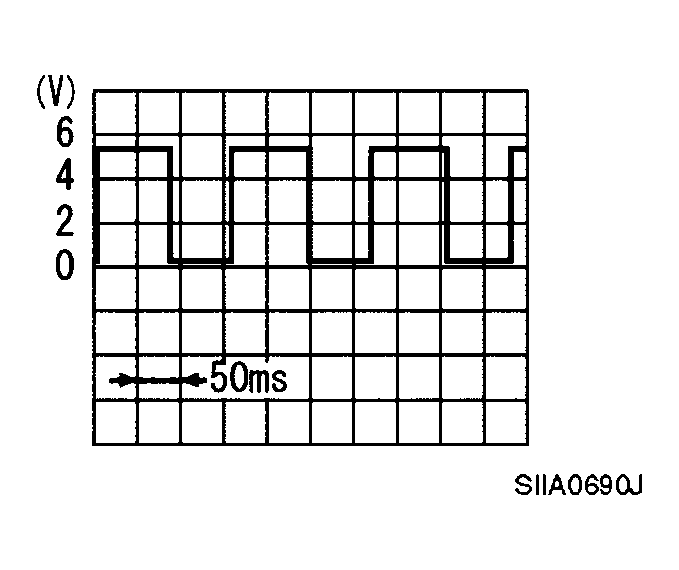

21	W/G	Sliding sensor signal	Input	Sliding device active
				Sliding device inactive	0 or 5
24	L/G	Sliding switch forward signal	Input	When sliding switch forward is operated	0
				Other than above.	Battery voltage
28	G/B	Ground	-	-	0
36	LG/R	Cancel switch signal	Input	Cancel switch ON with rear door (LH) open	5
				Cancel switch ON with rear door (LH) close	0
				Cancel switch CANCEL	0
43	GY/R	Rear door switch (LH) signal	Input	Rear door (LH) open (ON)	0
				Rear door (LH) close (OFF)	Battery voltage
74	G/R	Ground (sensor system)	-	-	0
