Terminals and Reference Value for AV and NAVI Control Unit

AV AND NAVI CONTROL UNIT TERMINALS AND REFERENCE VALUE

Terminal (Wire color)		Item	Signal input/output	Condition		Reference value
+	-			Ignition switch	Operation
1 (B)	Ground	Ground	-	ON	-	Approx. 0 V
2 (SB)	Ground	Battery power supply	Input	OFF	-	Battery voltage
3 (SB)
4 (B)	Ground	Ground	-	ON	-	Approx. 0 V
6 (L/OR)	Ground	ACC power supply	Input	ACC	-	Battery voltage

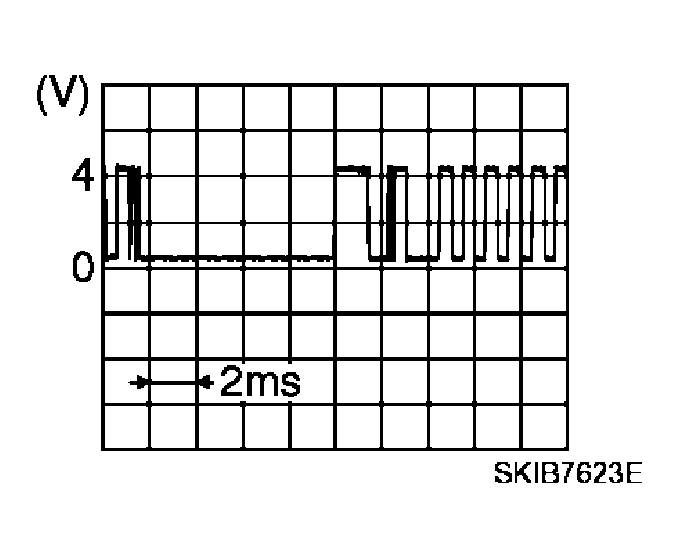

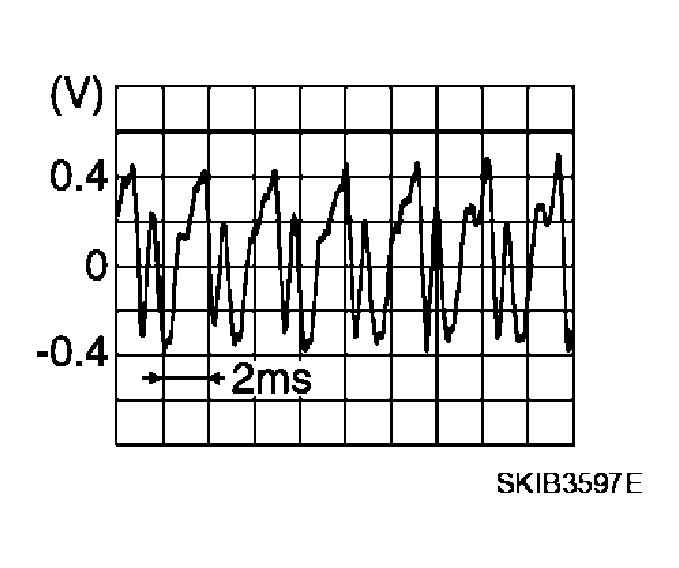

7 (R)	8 (L)	Voice guidance signal	Output	ON	Press "VOICE" button	Courtesy of NISSAN MOTOR CO., U.S.A.
9	-	Shield	-	-	-	-

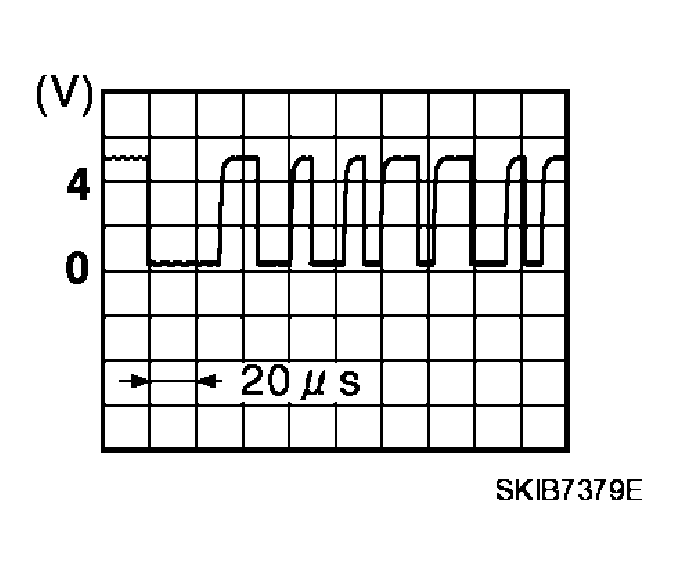

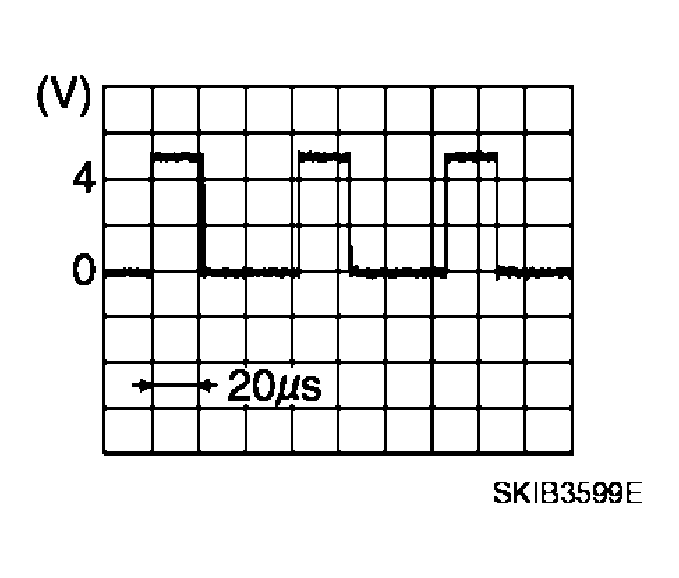

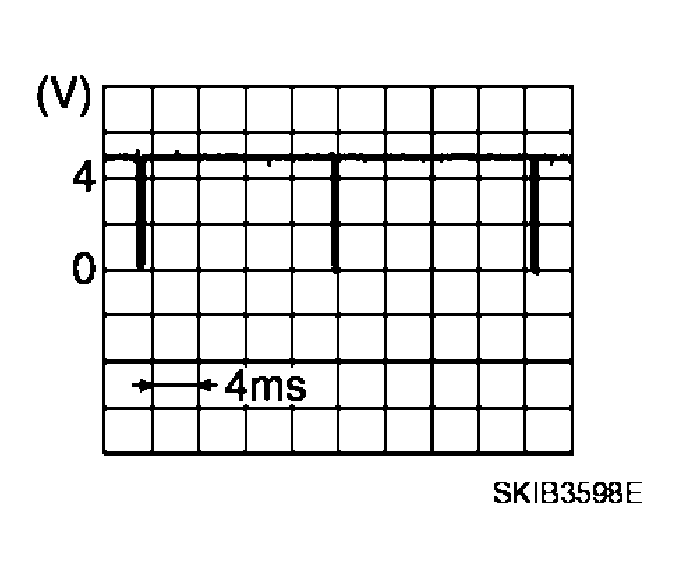

11 (R)	Ground	Vertical synchronizing (VP) signal	Input	ON	Set the selector lever in R position, and then display the rear view image	Courtesy of NISSAN MOTOR CO., U.S.A.
					Other than the above	Approx. 0 V

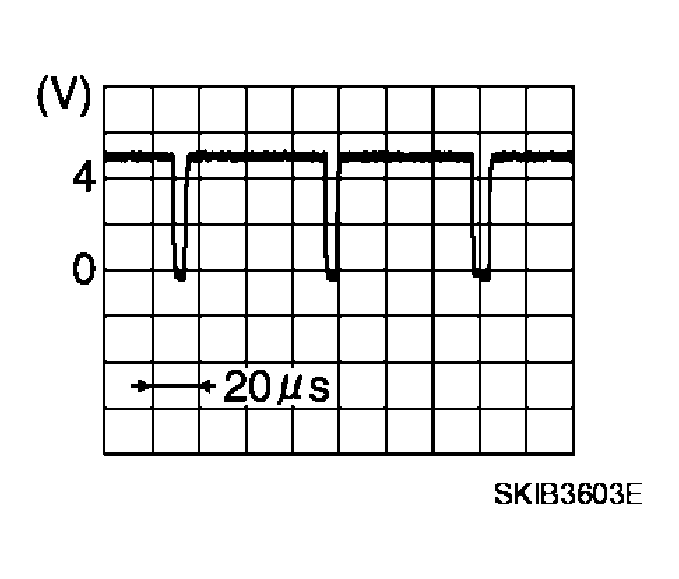

12 (B)	Ground	RGB area (YS) signal	Output	ON	Set the selector lever in R position, and then display the rear view image	Courtesy of NISSAN MOTOR CO., U.S.A.

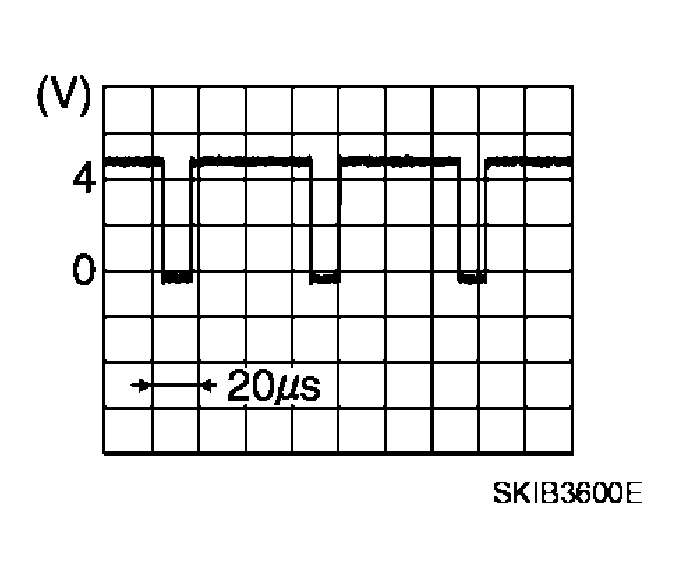

					Other than the above	Courtesy of NISSAN MOTOR CO., U.S.A.

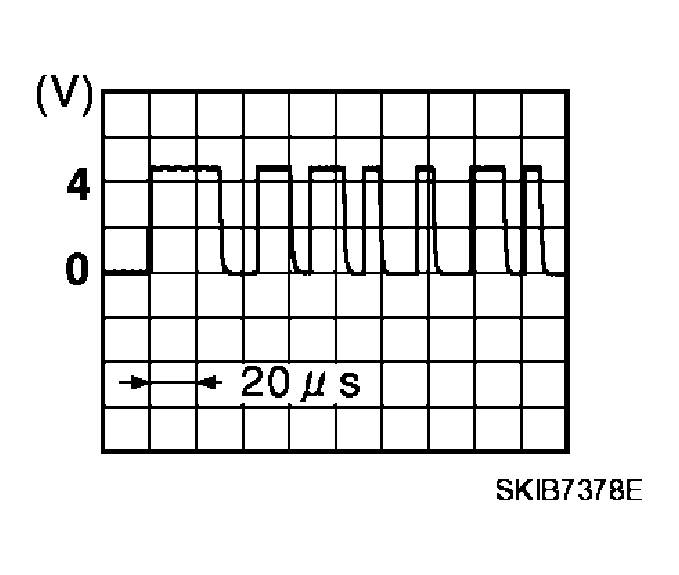

13 (W)	Ground	Horizontal synchronizing (HP) signal	Input	ON	Set the selector lever in R position, and then display the rear view image	Courtesy of NISSAN MOTOR CO., U.S.A.
					Other than the above	Approx. 0 V
14	-	Shield	-	-	-	-

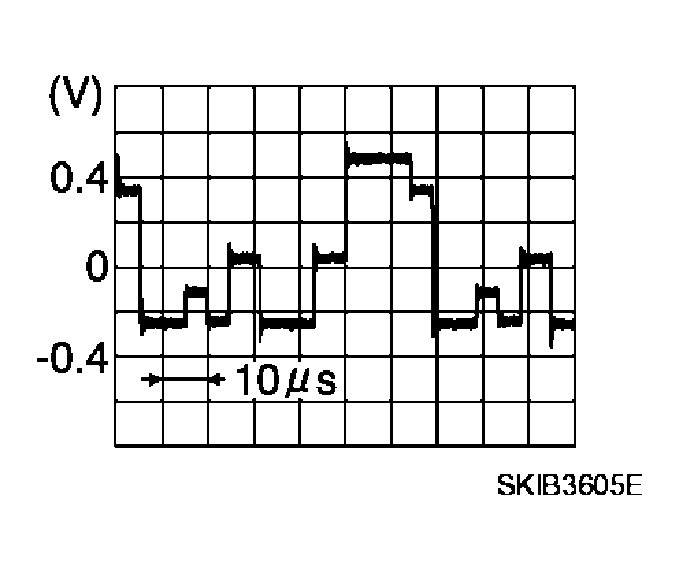

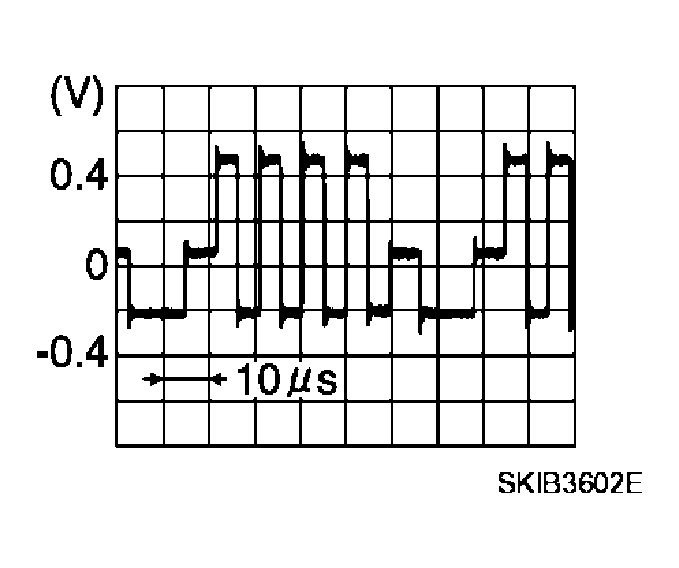

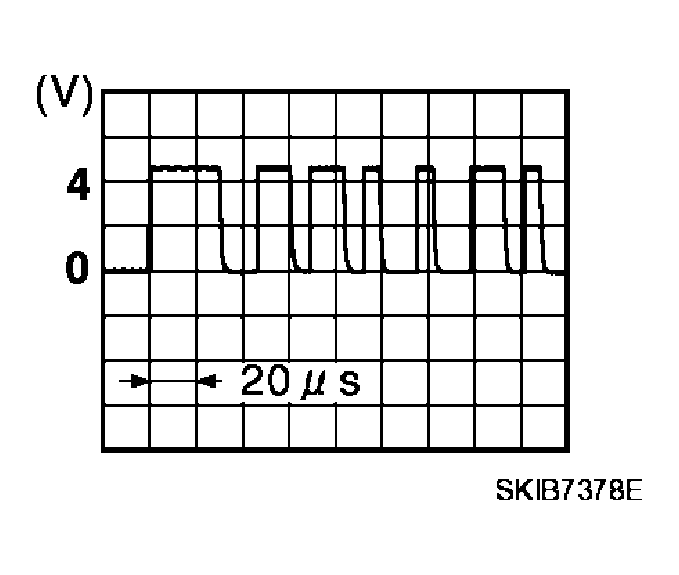

15 (LG)	Ground	RGB signal (B: blue)	Output	ON	Start Confirmation/Adjustment mode, and then display color bar by selecting "Display Color Spectrum Bar" on DISPLAY DIAGNOSIS screen	Courtesy of NISSAN MOTOR CO., U.S.A.

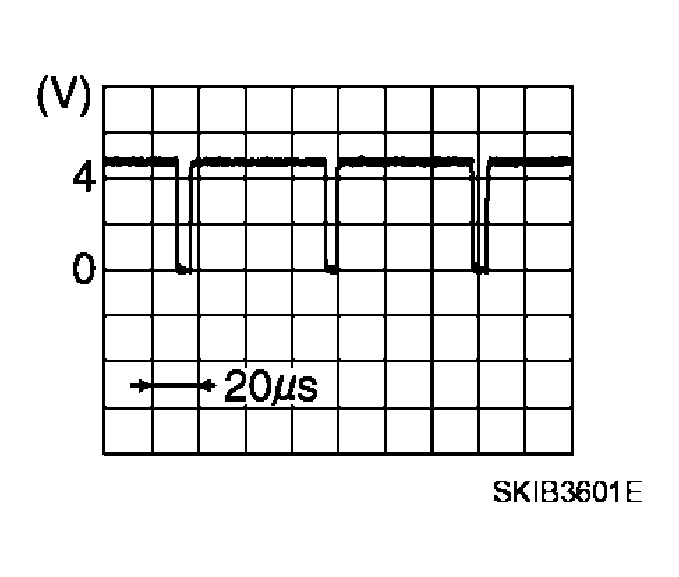

16 (G)	Ground	RGB synchronizing signal	Output	ON	When displaying RGB image	Courtesy of NISSAN MOTOR CO., U.S.A.

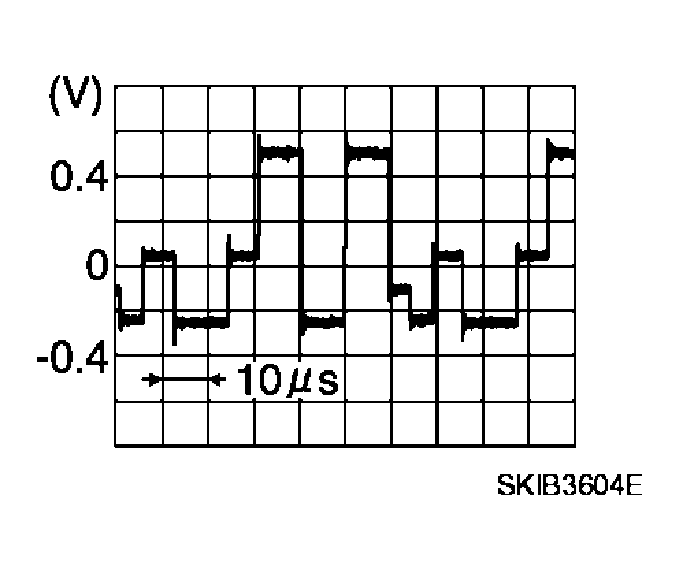

18 (L)	Ground	RGB signal (R: red)	Output	ON	Start Confirmation/Adjustment mode, and then display color bar by selecting "Display Color Spectrum Bar" on DISPLAY DIAGNOSIS screen	Courtesy of NISSAN MOTOR CO., U.S.A.
19	-	Shield	-	-	-	-
21 (PU)	Ground	RGB signal (G: green)	Output	ON	Start Confirmation/Adjustment mode, and then display color bar by selecting "Display Color Spectrum Bar" on DISPLAY DIAGNOSIS screen	Courtesy of NISSAN MOTOR CO., U.S.A.
22 (W)	Ground	Camera-connection recognition signal	Input	ON	Connected to rear view camera control unit connector	Approx. 0 V
					Not connected rear view camera control unit connector	Approx. 5 V
25 (R/L)	Ground	Illumination dimmer signal	Input	ON	Lighting switch is ON, and then optical sensor is not illuminated	Approx. 12 V
					Lighting switch OFF	Approx. 0 V
					Lighting switch is ON, and then optical sensor is illuminated
26 (W/G)	Ground	Ignition signal	Input	ON	-	Battery voltage
27 (R/B)	Ground	Reverse signal	Input	ON	Select R position	Approx. 12 V
					Other position	Approx. 0 V
28 (OR/L)	Ground	Vehicle speed signal (8-pulse)	Input	ON	When vehicle speed is approx. 40 km/h (25 MPH)	Courtesy of NISSAN MOTOR CO., U.S.A.
31	-	Shield	-	-	-	-

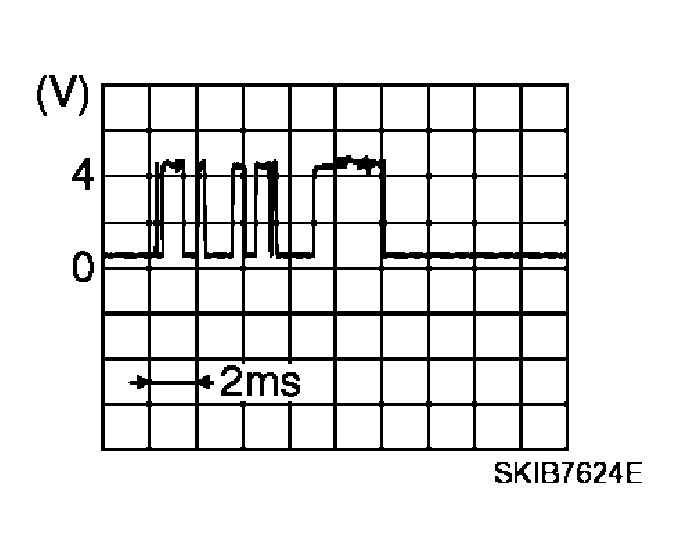

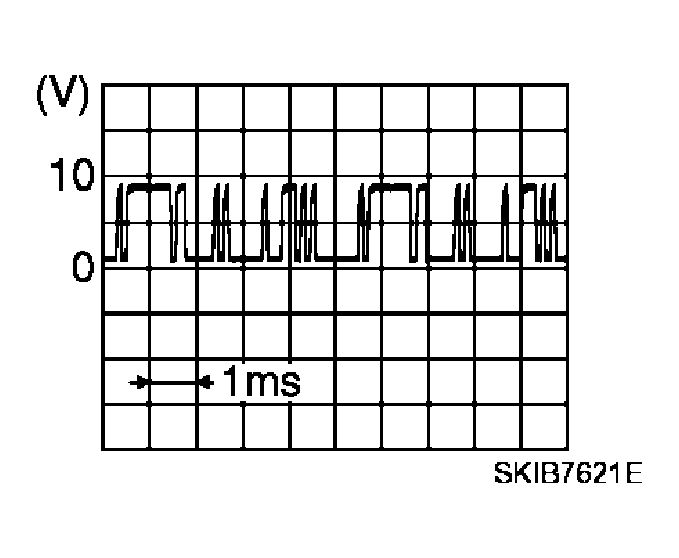

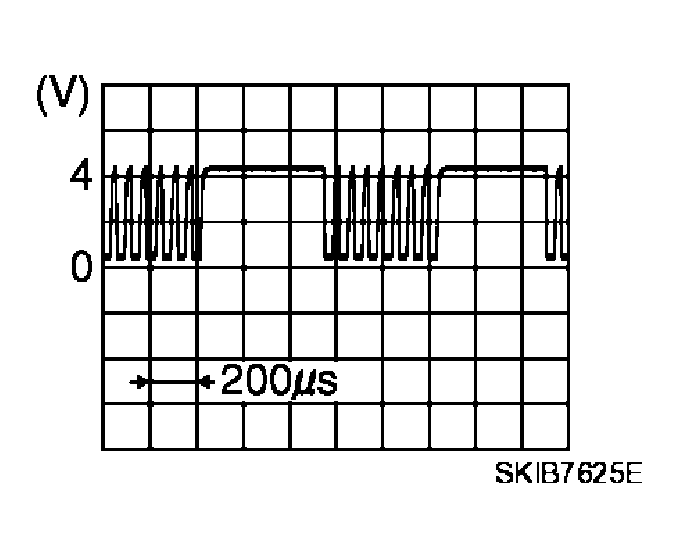

32 (PU)	Ground	Communication signal (ME-AV)	Input	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.

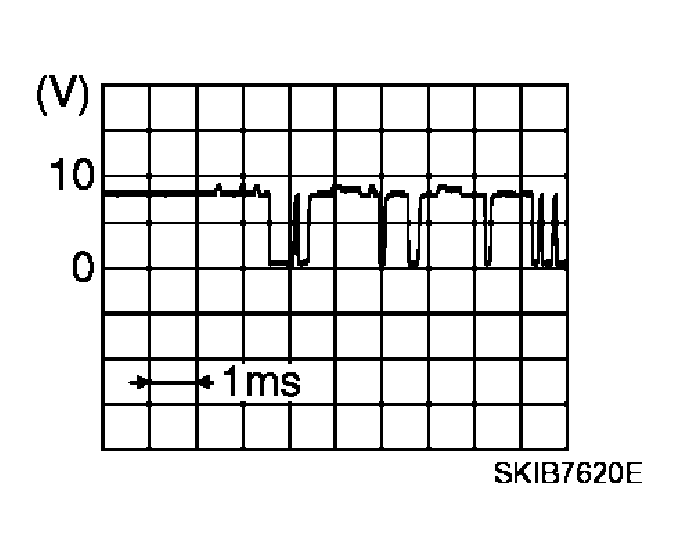

33 (LG)	Ground	Communication signal (AV-ME)	Output	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.

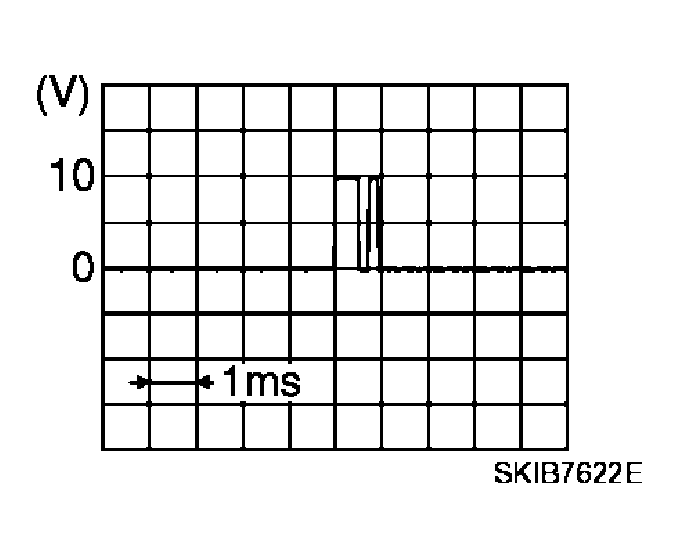

34 (P)	Ground	Communication signal (AV-CN)	Output	ON	Perform CONSULT-II	Courtesy of NISSAN MOTOR CO., U.S.A.

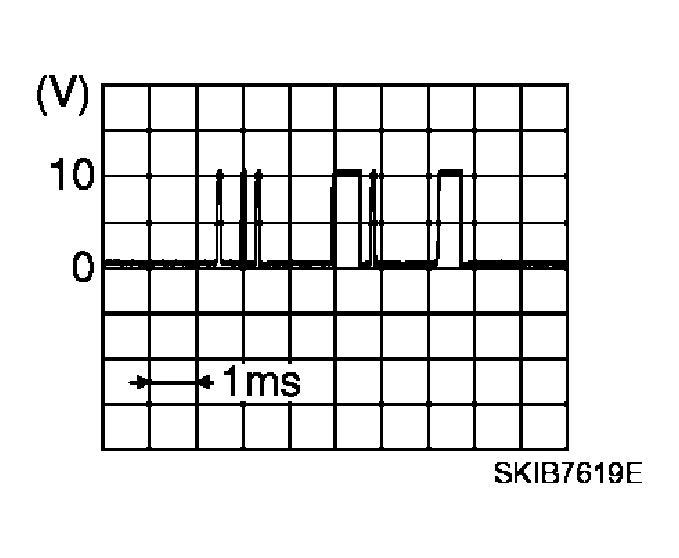

35 (BR/Y)	Ground	Communication signal (CN-AV)	Input	ON	Perform CONSULT-II	Courtesy of NISSAN MOTOR CO., U.S.A.
36	-	Shield	-	-	-	-
37 (W)	Ground	Communication signal (AC-AV)	Input	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
38 (R)	Ground	Communication signal (AV-AC)	Output	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
39 (B)	Ground	A/C clock signal	Input	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
43	-	Shield	-	-	-	-
44 (Y)	Ground	Communication signal (+)	Input/Output	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
45 (BR)	Ground	Communication signal (-)	Input/Output	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
46	-	Shield	-	-	-	-
47 (LG)	Ground	Communication signal (+)	Input/Output	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
48 (PU)	Ground	Communication signal (-)	Input/Output	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
66	Ground	GPS signal	Input	ON	Connector is not connected	Approx. 5 V
67	-	Shield	-	-	-	-
