Control Valve And TCM Removal And Installation: Removal

Disconnect the battery cable from the negative terminal.
Drain ATF through drain plug.
Disconnect heated oxygen sensor 2 harness connector.
Disconnect A/T assembly harness connector.
Remove snap ring from A/T assembly harness connector.

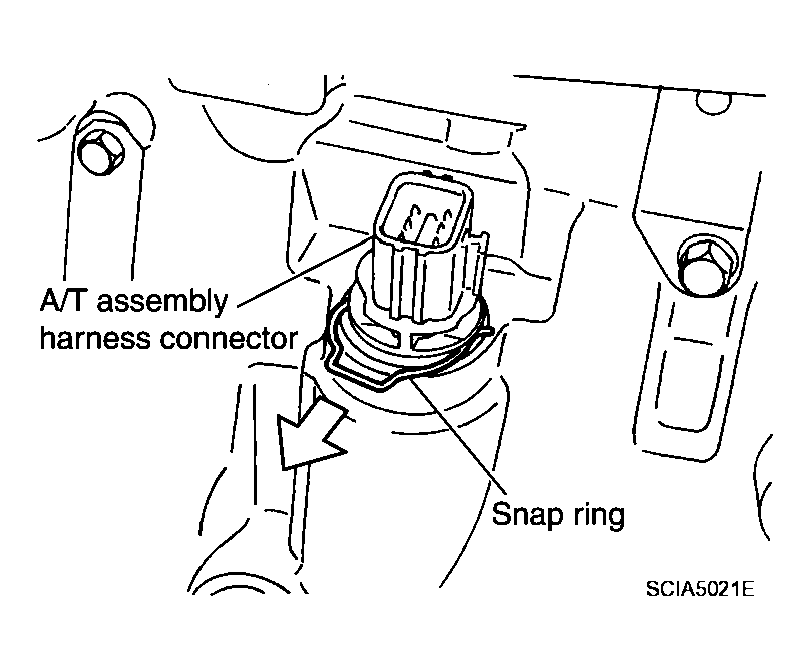

Fig 1: Identifying Snap Ring From A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Push A/T assembly harness connector.
CAUTION: Be careful not to damage connector.

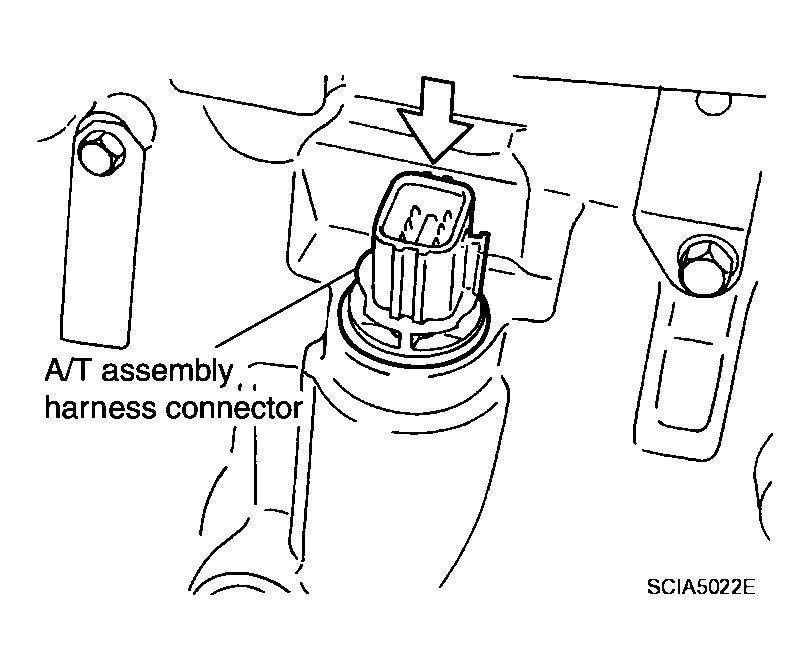

Fig 2: Pushing A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pan and oil pan gasket.

Fig 3: Identifying Oil Pan Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Check foreign materials in oil pan to help determine causes of malfunction. If the ATF is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.

Fig 4: Checking A/T Fluid For Foreign Materials
Courtesy of NISSAN MOTOR CO., U.S.A.
- If frictional material is detected, perform A/T fluid cooler cleaning. Refer to "A/T FLUID COOLER CLEANING ".
Remove magnets from oil pan.

Fig 5: View Of Magnets In Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect A/T fluid temperature sensor 2 connector.

Fig 6: Locating A/T Fluid Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful not to damage connector.
Straighten terminal clip to free terminal cord assembly A/T fluid temperature sensor 2 harness.

Fig 7: Locating A/T Fluid Temperature Sensor 2 And Terminal Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect revolution sensor connector.

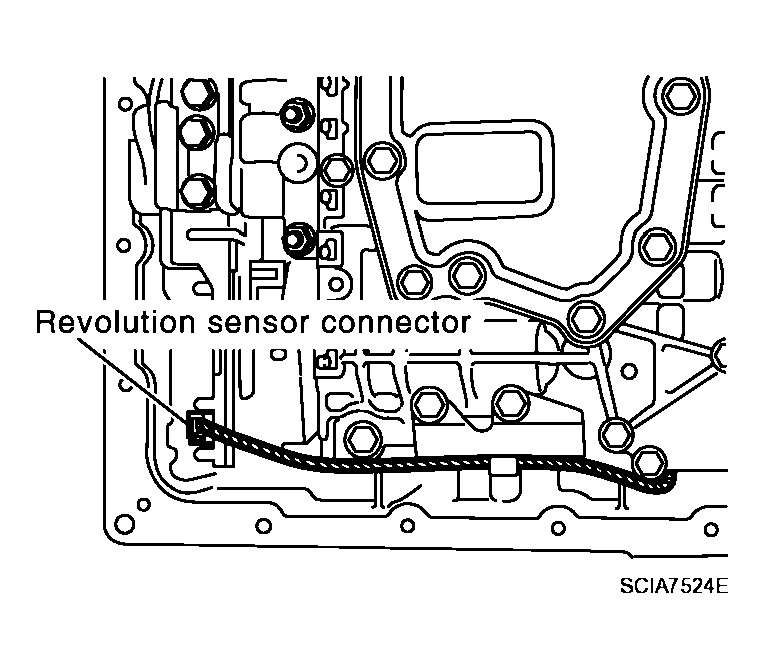

Fig 8: Identifying Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful not to damage connector.
Straighten terminal clip to free revolution sensor harness.

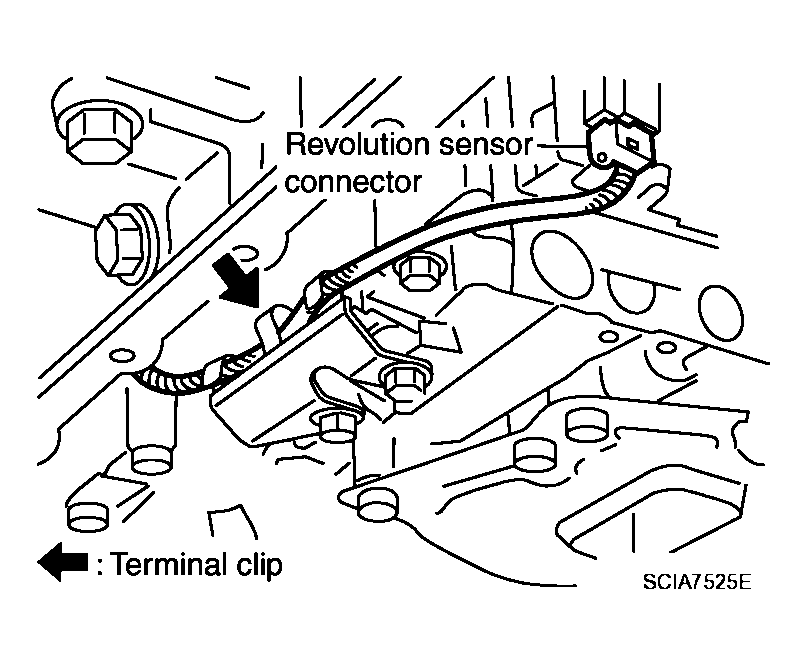

Fig 9: Straightening Terminal Clip
Courtesy of NISSAN MOTOR CO., U.S.A.

Remove bolts A, B and C from control valve with TCM.

BOLTS SPECIFICATIONS

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

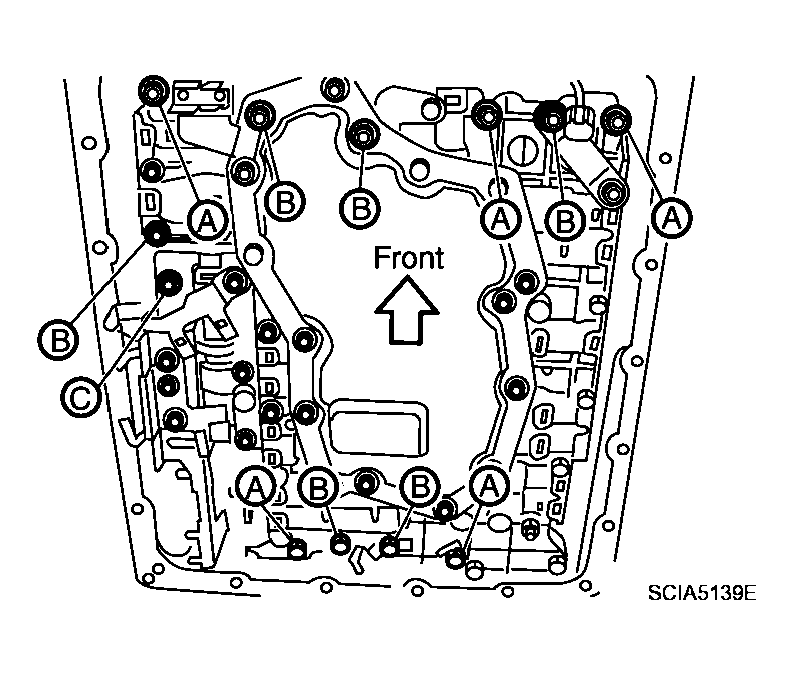

Fig 10: Identifying Removing Bolts A, B And C From Control Valve With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove control valve with TCM from transmission case.

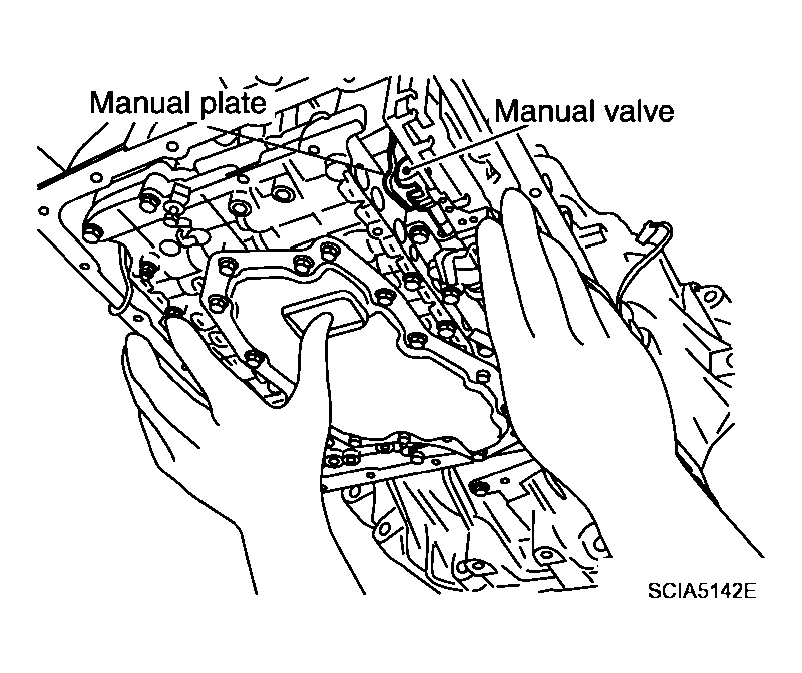

Fig 11: Identifying Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When removing, be careful with the manual valve notch and manual plate height. Remove it vertically.
Remove A/T fluid temperature sensor 2 with bracket from control valve with TCM.

Fig 12: Identifying A/T Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove bracket from A/T fluid temperature sensor 2.

Fig 13: Locating A/T Fluid Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring from A/T assembly harness connector.

Fig 14: Locating Harness Connector O Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect TCM connectors.

Fig 15: Locating TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful not to damage connectors.
Remove A/T assembly harness connector from control valve with TCM using flat-blade screwdriver.

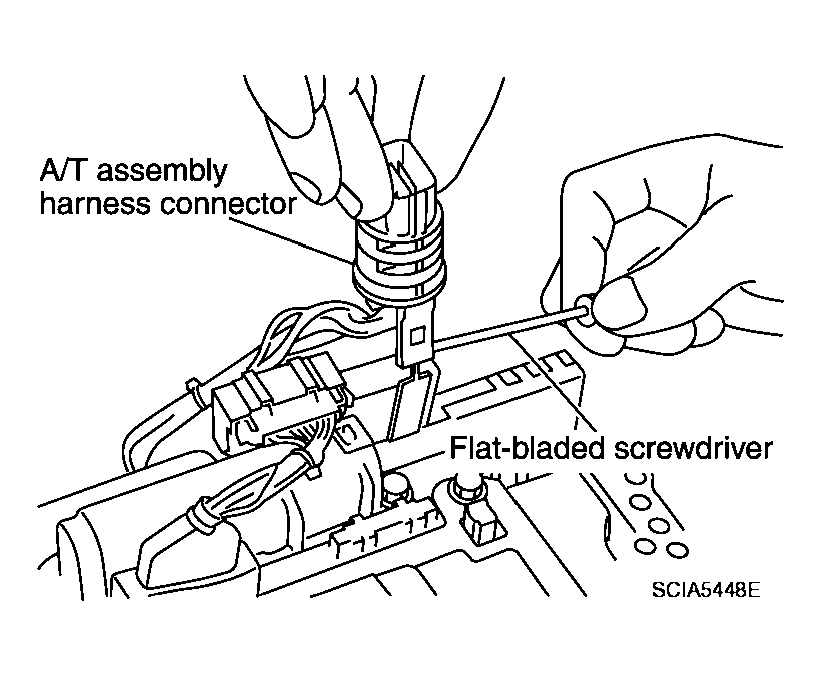

Fig 16: Removing A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect TCM connector and park/neutral position switch connector

Fig 17: Locating TCM And Park Neutral Position Switch Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be careful not to damage connectors.
