A/T Fluid Temperature Sensor 2 Removal And Installation: Installation

CAUTION: After completing installation, check for A/T fluid leakage and A/T fluid level. Refer to "CHECKING A/T FLUID ".
  1. Install A/T fluid temperature sensor 2 to bracket.
    Fig 1: Locating A/T Fluid Temperature Sensor
    G04075652Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM. Tighten A/T fluid temperature sensor 2 bolts to the specified torque. Refer to "COMPONENTS ".

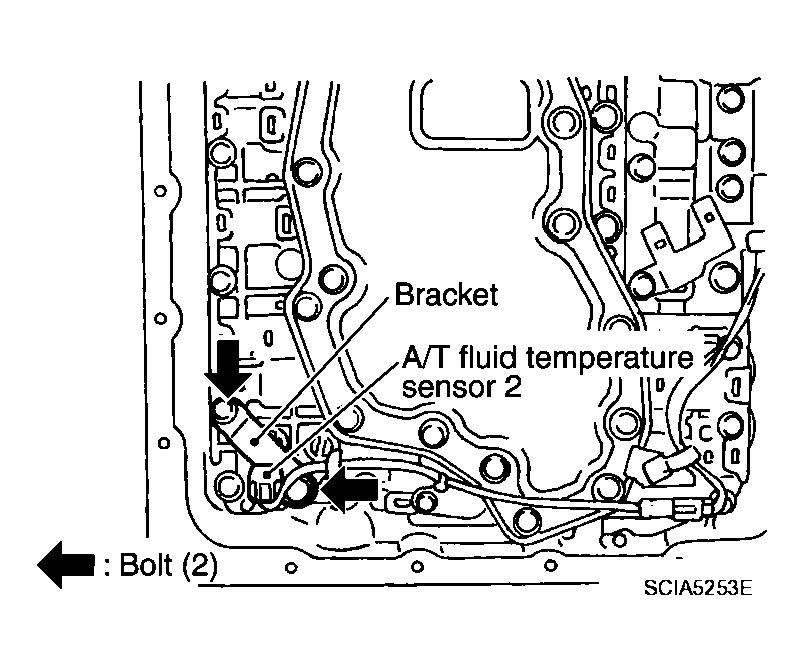

    Fig 2: Identifying A/T Fluid Temperature Sensor 2 (With Bracket) In Control Valve With TCM
    G04139326Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Connect A/T fluid temperature sensor 2 connector.
    Fig 3: Locating A/T Fluid Temperature Sensor 2
    G04075645Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Securely fasten A/T fluid temperature sensor 2 harness with terminal clip.

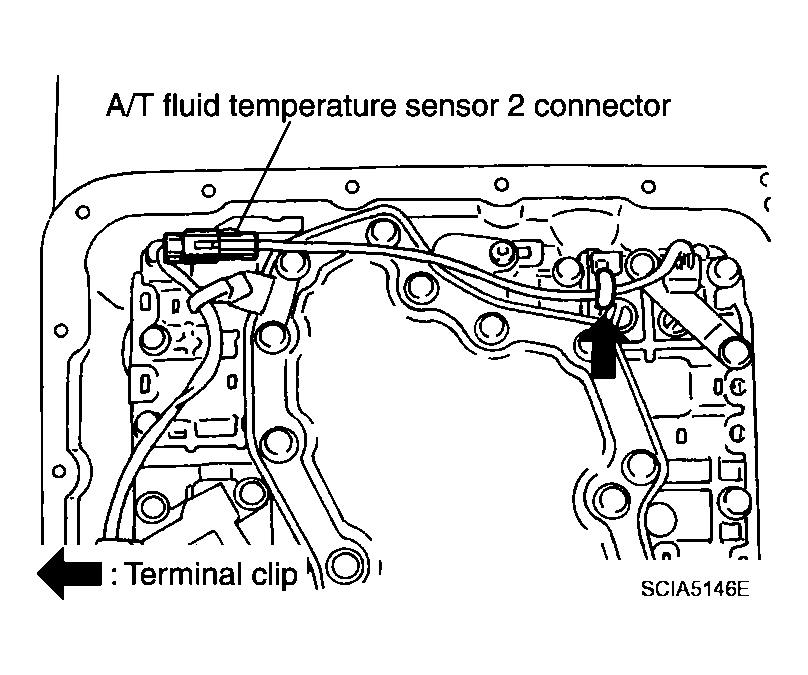

    Fig 4: Fastening A/T Fluid Temperature Sensor 2 Harness With Terminal Clip
    G04139328Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install oil pan to transmission case.
    1. Install oil pan gasket to oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
    2. Install oil pan (with oil pan gasket) to transmission case.
      Fig 5: Identifying Oil Pan Bolts
      G04075672Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque. Refer to "COMPONENTS ".

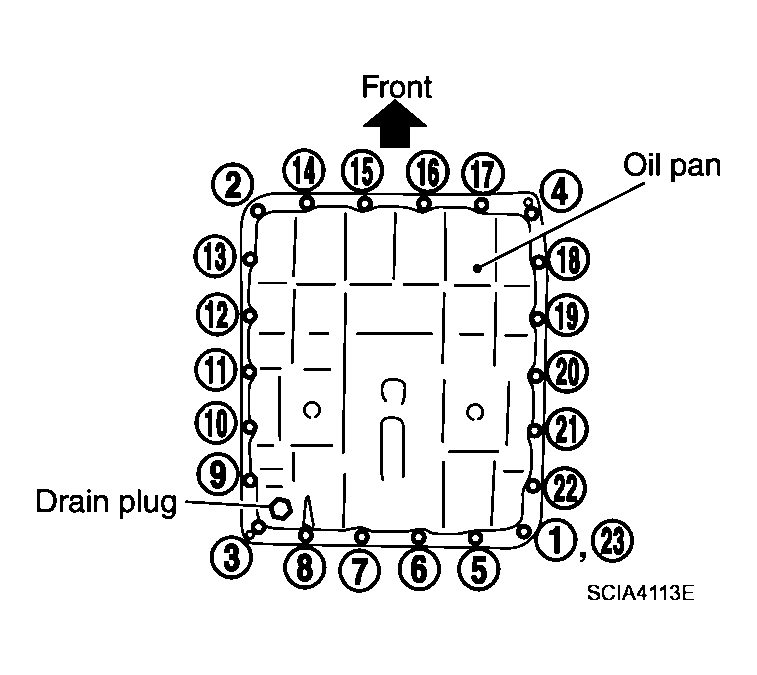

    Fig 6: Identifying Oil Pan Bolts Tightening Sequence
    G04139330Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse oil pan mounting bolts.
  6. Install drain plug to oil pan. Tighten drain plug to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse drain plug gasket.
  7. Connect heated oxygen sensor 2 harness connector.
  8. Pour ATF into A/T assembly. Refer to "CHANGING A/T FLUID ".
  9. Connect the battery cable to the negative terminal.
