DVD Entertainment System: Schematic

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

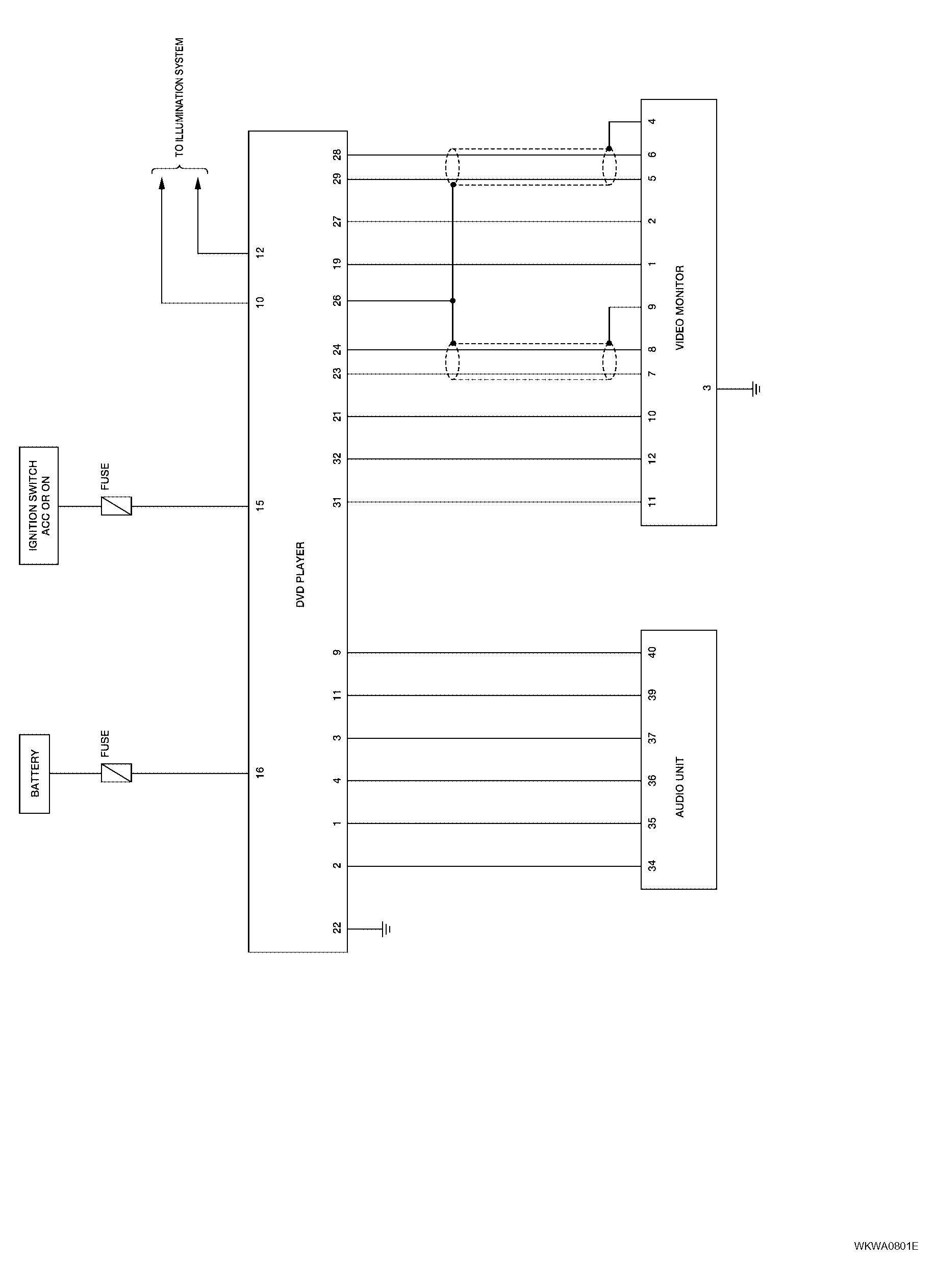

Fig 1: DVD Entertainment System - Schematic
G04136928Courtesy of NISSAN MOTOR CO., U.S.A.
