Operation Procedure

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.

Fig 1: Consult-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ECU INPUT SIGNALS", "MAIN SIGNALS", or "SELECTION FROM MENU" on "SELECT MONITOR ITEM" screen.

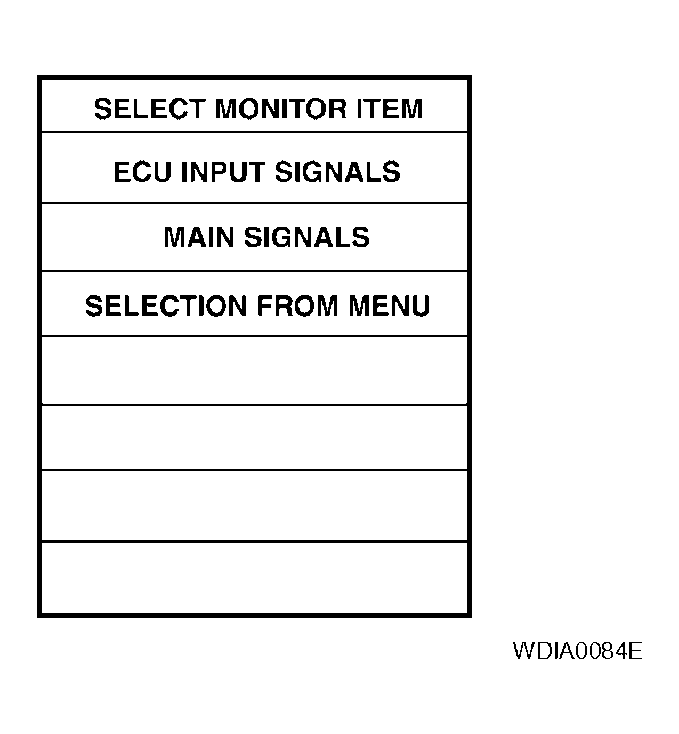

Fig 2: Display SELECT MONITOR ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
